VMS-840XY video measurement system


Non-Contact CMM Video Measurement System (VMS-840XY)

Measuring X-Y 8″ x 4″ at 1 micron resolution

High precision measurement with Auto Edge Detection, VMS-840XY is the modern video measurement system combining optical comparator, digital microscope, non-contact inspection measurement system in one system for day to day precision metrology needs. With this affordable system you can perform what optical comparator does & video inspection can do all in one updated system with modern software & computer.

  • Video Comparator = Optical Comparator + Digital Microscope
  • Non-Contact Measurement with Auto Edge Detection for ease of use and precision
  • First article inspection and image capturing for documentation




Auto Edge Detection

Automatic one-click to measure with auto edge detection

Programmable Repeatable Measurements




Key Features

  • Non-contact CMM, computer driven video measurement system
  • 8″ x 4″ XY measurement with 1 micron resolution
  • Auto edge detection software for one click measurement
  • high resolution color digital camera 1.3 mega pixel (1280×1024)
  • zoom magnification 30x-200x with detents

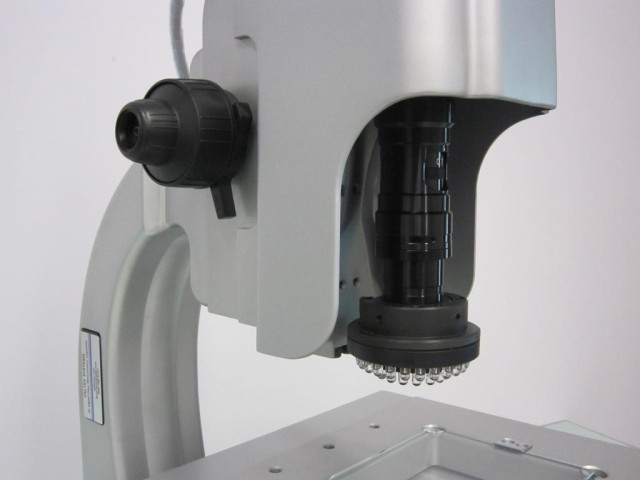

  • manual Z axis focus with fine focus control & locking
  • integrated LED ring light with segments control, computer control

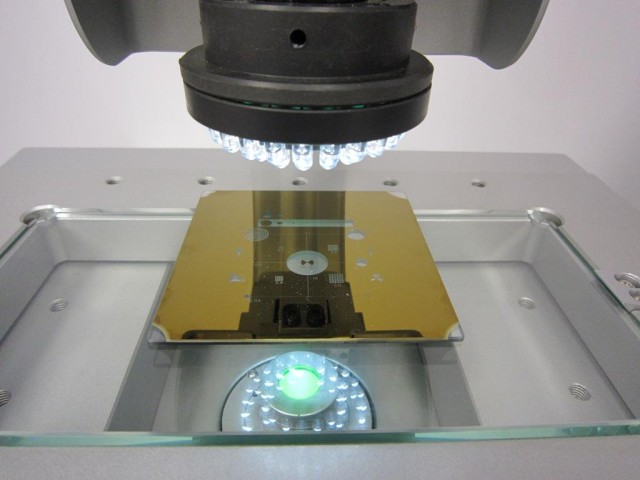

  • integrated LED back light, computer control
  • quick manual measurement with DRO digital readout

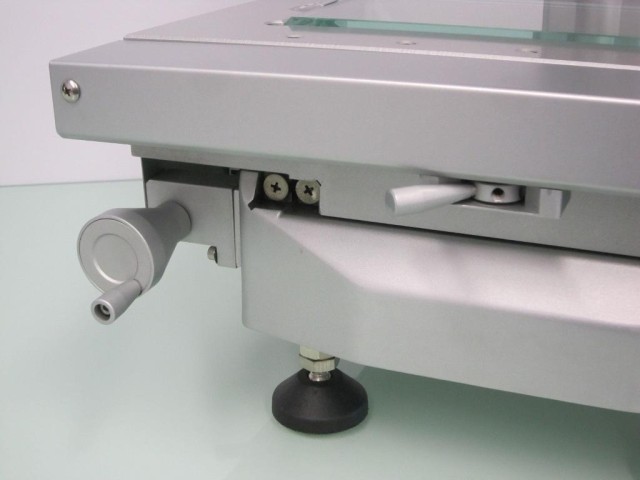

  • XY stage movement with turning dial for fine movement, and quick release for fast movement






Applications

  • medical device
  • machining part
  • reverse engineering
  • PCB printed circuit bare board
  • metal, plastic, extrusion
  • semiconductor
  • high precision measurement

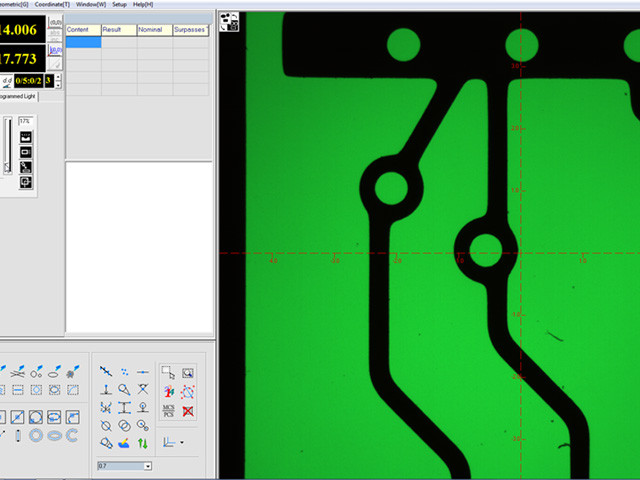

Screen Shots




Specifications

VMS-840XY specifications




Video Measurement System. Non-Contact Video Comparator Measuring System

Video Measurement System. Non-Contact Video Comparator Measuring System (VMS-840XY)



$9,950 Price range Get Price Quote Download Brochure




Other Non-Contact Video Measurement Systems

Digital Microscope Video Measurement System VZM-200 with Sony CCD USB microscope camera

Digital Microscope Video Measurement System with Sony CCD USB microscope camera (VZM-200)

Price range $5-$6K




LX-100 with HD-LCD flex mount, Track Stand, Computer for Measurement

LX-100  video measurement inspection system

Price range $3-$4K
