RX-100-3D series


3D Digital Microscope Video Inspection System RX-100-3D

with Retina Display, 1080p HD camera, 3D rotation, and measurement software

HD60-L12 11.6 inch Retina Display LCD (1)

Retina Display 190 pixels per inch

Caltex 1080p HD digital USB microscope logo

60 frames per second viewing on LCD

Caltex digital USB microscope USB logo

30 frames per second viewing on computer

Caltex digital USB microscope SD card logo

Save images & video to SD card without computer

Caltex 1080p HD digital USB microscope MOUSE control

Measurement Software for computer

3D Rotation Inspection $3,500+ price range Get Price Quote

BGA Inspection Video

RX-100 with BGA inspection mirror for BGA inspection of outside rows and some inside rows

By using 2 rotating mirrors and 3rd mirror along side BGA component, now you can see 90 degree into BGA solder joints and rotate to see top and bottom interfaces of BGA balls.

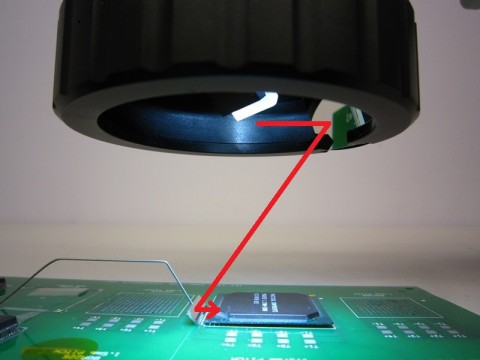

90 degree view into BGA and 360 rotation for BGA Inspection

90 degree view into BGA and 360 rotation for BGA Inspection


3D Video

3D Rotational View at 35 degree oblique angle

2 Rotating mirrors with precision alignment offer you dynamic and 3D view of microscopic parts

3D

Innovative 3D rotational digital HD microscope video inspection system with latest 1080p HD camera technology offers you unparalleled real time 3D viewing of microscopic world. Ergonomic inspection system with image capture, video recording, documentation, and measurement capabilities make your microscopic inspection work easier and more efficient.

Key Features

  • Zoom magnification 15-100x with detents
  • Expandable to 4x-400x
  • 0° straight down with long working distance for rework & soldering, WD=103mm (4.05″)
  • 30° oblique angle view with 3-D 360° manual rotation for 3D solder joint inspection, WD=45mm (1.77″)
  • Built-in LED ring illumination with intensity control
  • Multi Angle & Multi Position Boom Stand with Focus Control for large PCB
  • Also available with post stand, track stand, post stand with back lighting, hydraulic arm stand
  • Choices of HD camera, USB camera, Pad camera.

RX-100 Applications

    • Inspection PCB / SMT solder joints
    • BGA inspection
    • Through hole inspection of side wall
    • Medical Devices
    • Metal, plastic, and material inspection & documentation
    • Failure analysis
    • Capturing images & Recording video for documentation or training
    • Measurement software for dimensional measurement

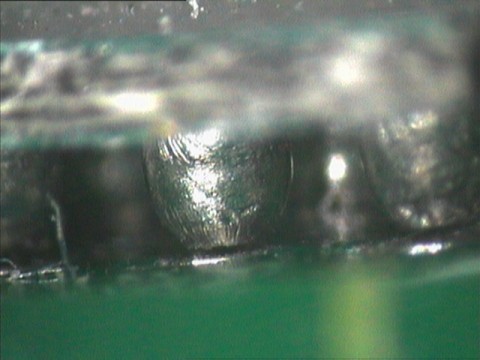

see crack at BGA ball solder joint

see crack at BGA ball solder joint

zoom out for wider viewing area

zoom out for wider viewing area

BGA inspection

BGA inspection

fine pitch inspection 2

fine pitch inspection

J lead inspection

J lead inspection

solder ball

solder ball

perfect focus smt combine 5 focus layers

advanced measurement software to increase depth of focus

RX-100 Specifications

RX-100 Specifications

Popular RX-100 models

RX-100-HD60L12-BS 1

3D Rotational 1080p HD Digital USB Microscope System with 11.6″ Ultra Sharp Retina Display (RX-100-HD60L12)

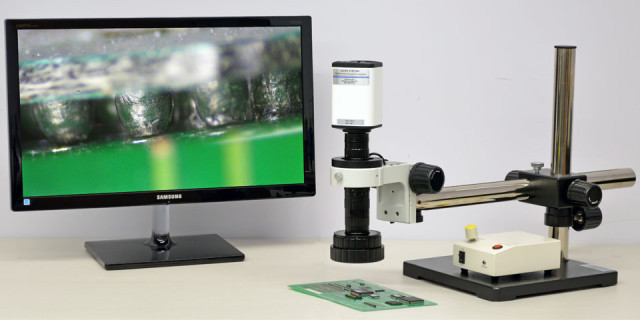

1080p HD 6MP camera 3D BGA inspection system (RX-100-BGA-HD60)

1080p HD 6MP camera 3D BGA inspection system with desktop 24″ HD LCD (RX-100-BGA-HD60)



RX-100-HD60-TSBL-XY medical device 1

3D Rotational 1080p HD 15x-100x Zoom with LED back lighting track stand for medical devices (RX-100-HD60-TSBL-XY)
