4K UltraHD Microscope Camera

The latest UltraHD 4K camera offers SONY IMX334 CMOS sensor for high-resolution image (3840 x 2160) at 60 frames per second real-time refresh rate. Measurement functions are built-in for easy measuring dimension directly on LCD and powerful measurement software includes measurement, extended depth of focus and photo stitching for high-end image analysis on Windows computer. At the best performance over price ratio, it is the best time to upgrade your inspection to UltraHD 4K resolution.

Price Range $1,300 Price Quote

4K Image

  • SONY high-performance IMX334 CMOS sensor for high definition image and superb real-time refresh rate
  • 8 MegaPixel (3840×2160), 1/1.8″ sensor size
  • 4 times more resolution than 1080p full HD
  • Switch between 4K and 1080p according to LCD monitor
  • 60 FPS at 4K, 60 FPS at 1080p
  • HDMI 2.0 standard



Interface

  • HDMI output
  • GigE Ethernet (GE) port output
  • SD card
  • USB 3.0 output
  • 5G WiFi

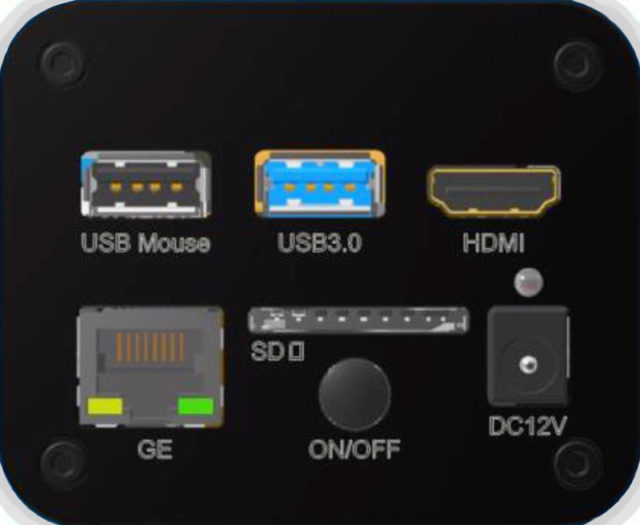

4K Camera Top View



Camera Control by USB Mouse

  • Auto Exposure, Compensation, Exposure Time, Gain
  • Auto White Balance, Manual White Balance: Red, Green, Blue
  • Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness


Image Control Panel

  • Digital Zoom
  • Flip horizontally and vertically
  • Crosshairs
  • Picture in picture
  • Browsing SD card file



Measurement on LCD

  • Point-To-Point, Linear, XY, Radius, Diameter, Circumference, Area, Angle, Counting
  • Crosshairs
  • Reticle



Powerful Software on Computer

  • Measurement software is included and compatible with Windows 10/8/7
  • Dimensional measurements, extended depth of focus, image stitching, image stacking, etc.



Dimensional Measurement

  • Point-To-Point, Linear, XY, Radius, Diameter, Circumference, Area, Angle, Counting
  • Perform measurements by mouse clicks, simple and easy to use
  • Export data in photo or Excel



Infinity Extended Depth of Focus

  • Compile images at different focal layers for a “Perfect Focus” image with everything in focus



Image Stitching

  • Software stitches high-resolution images of great magnification for an image of large viewing area
  • Retain detailed and magnified resolution of original images
  • Similar to panoramic photo



Image Stacking






Specifications

Model: 4K

Specifications

Sensor Manufacturer SONY IMX334
Sensor Resolution 8 MegaPixel, 3840 x 2160 pixel resolution
Frame Rate 60 Frames Per Second
Sensor Size 1/1.8″
Pixel Size (µm) 2.0 x 2.0

G Sensitivity

Dark Current

505mv with 1/30s

0.1mv with 1/30s

Binning 1 x 1
Exposure Time 0.04ms – 1000ms
HDMI Interface

Comply with HDMI 2.0 standard

60 FPS @ 4K or 60 FPS @ 1080p

Switchable between 4K and 1080p according to LCD monitor

GE Interface

GigE Ethernet port to router for video transfer

60 FPS @ 4K, H264 encoded video

DHCP configuration or manual configuration

USB3.0*

Connect to USB Flash Drive for photo and video saving

Connect to 5G WiFi module for WiFi wireless video transfer

Connect to computer’s USB3.0 port for video transfer

MPEG video format

WiFi* Connect to 5G WiFi via USB3.0 port
SD Card Capture Photo and Video to SD Card
Camera Setting

Exposure/Gain

White Balance

Sharpening

3D Denoise

Saturation Adjustment

Contrast Adjustment

Brightness Adjustment

Gamma Adjustment

50Hz/60Hz Anti-Flicker Function

Image Operation

Digital Zoom up to 10x

Mirror and Flip

Freeze

Crosshair

PIP (Picture in Picture)

Compare live image with saved image

File Browser

Video Playback

Measurement Functions on HDMI LCD Point-to-Point, Linear, XY, Radius, Diameter, Circumference, Area, Angle, Counting
Measurement Software on Windows PC

Point-to-Point, Linear, XY, Radius, Diameter, Circumference, Area, Angle, Counting

Extended Depth Of Focus

Image Stitching

Image Stacking

Color Composite

Camera Mount C-Mount
Power Requirement 110V-220V in, DC12V out.
* The function will be available with firmware update in a few months
