Digital Microscopes Overview


HD Digital USB Microscope & Video Inspection Systems Overview

VIP-50-HD10 tilting 1

1x-50x Macro Zoom HD video inspection system

1080p HD camera ergonomic video inspection  for PCB SMT, Medical Devices and small parts (LX-100)

1080p HD camera ergonomic video inspection for PCB SMT, Medical Devices and small parts (LX-100)

VIP-50

LX-100

  • 1x-50x zoom
  • Long working distance 6″ or greater
  • 1080p HD camera with built-in 10″ display or desktop LCD
  • Capture images to SD card without a computer
  • 15x-100x standard, expand to 1x-800x
  • 3D rotational angle view and straight view
  • 1080p HD camera with 24″ LCD or built-in 10″ LCD
  • Capture images to SD card without a computer

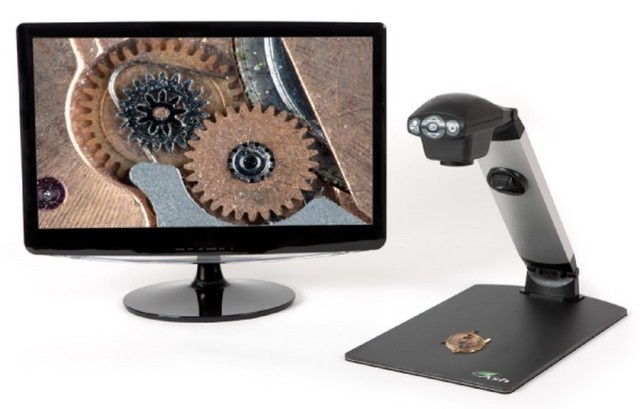

Auto Focus HD video inspection system AX-T720

Auto Focus HD video inspection with base, Tabletop model

Auto Focus HD camera video inspection system with VESA mounted over convey belt for inline PCB or small part inspection

Auto Focus HD camera video inspection system with VESA mounted over convey belt for inline PCB or small part inspection

AX-T

AX-A

  • High resolution HD 720p/1080p imaging, real time refresh rate
  • Range of zoom magnification options, up to 120x
  • Long working distance, up to 333mm
  • Tabletop
  • High resolution HD 720p/1080p imaging, real time refresh rate
  • Range of zoom magnification options, up to 120x
  • Long working distance, up to 333mm
  • VESA mount arm.
  • Perfect for inline inspection over convey line

1080p HD 6MP camera 3D BGA inspection system (RX-100-BGA-HD60)

1080p HD 6MP camera 3D BGA inspection system (RX-100-BGA-HD60)

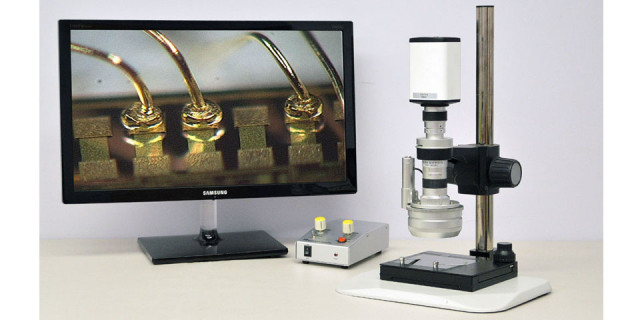

3D Rotational Digital Microscope CX-3000 with 1080p HD microscope camera & post stand

3D Rotational Digital Microscope CX-3000 with 1080p HD microscope camera & post stand

RX-100

CX-3000

  • 15x-100x Zoom standard, expand to 1x to 400x
  • 3D rotational view┬ámanual rotation
  • Perfect for BGA inspection with BGA mirror
  • 1080p HD camera or digital USB camera for documentation and measurement
  • Perfect for 3D BGA inspection, PCB SMT, and medical device
  • Laser light option for 3D solder paste inspection measurement
  • 50x-300x Zoom standard
  • 3D rotational view motorized rotation
  • 1080p HD camera, USB2.0 or USB3.0 camera with advanced measurement software
  • Multi position multi tilting angle boom stand or track stand or post stand
  • Perfect for wire bond, hybrid, failure analysis that require higher magnification
  • Laser light option for 3D solder paste inspection measurement
