Video Measurement Systems


Video Measurement Systems Overview

We offer various video measuring systems with different features and price ranges to meet your precision metrology needs and budgets.

Digital Microscope Video Measurement System VZM-200 with 1080p HD camera

Digital Microscope Video Measurement System VZM-200 with 1080p HD camera

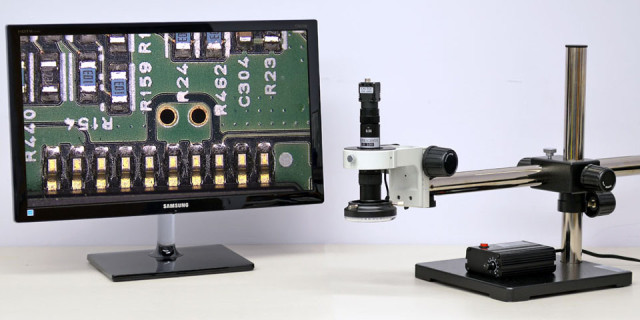

HD Digital Microscope Video Measurement System VZM-200 with boom stand for PCB

HD Digital Microscope Video Measurement System VZM-200 with boom stand for PCB

LXM-200

VZM-200

Low cost basic video measurement system

  • 30x-200x zoom, expand to 1x-800x
  • 1080p HD camera with USB output to computer
  • measurement software included for XY, circle, radius, diameter, angle, area
  • compact, low cost, field of view measuring system
  • price range $4,000
  • perfect for medical device, PCB bare board panel, and machining parts
Best field of view video measurement system

  • 30x-200x zoom, expand to 1x-4,000x
  • 2.0 MP digital USB SONY camera
  • measurement software PLUS perfect focus for infinite depth of field image
  • compact, low cost, field of view measuring system
  • price range $6,000

Video Measurement System. Non-Contact Video Comparator Measuring System

Video Measurement System. Non-Contact Video Comparator Measuring System

VMS845XYZ w Dell PC

VMS-840XY

VMS-845XYZ

Coordinate video measuring machine X-Y

  • low cost, high precision, coordinate measuring system
  • 30x-200x detent zoom
  • 8″x4″ X-Y measuring platform with 1μ encoder resolution
  • auto edge detection
  • dimensional measurement software with DRO on computer screen
  • price range $10,000
Coordinate video measuring system XYZ

  • manual XYZ vision measuring system
  • 8″x4″x5″ measuring stage with 1μ resolution
  • easy to use software measurement with DRO
  • price range $15,000

Vision Measurement System 8"x4"x5" with Auto Focus

Vision Measurement System 8″x4″x5″ with Auto Focus

AMS-845XYZ

VMS-845AZ

AMS-845XYZ

Measurement system for wire bond loop height measurement, depth measurement, IC wafer

  • manual XY, auto Z focus for Z-height measurement
  • 8″x4″x5″ XYZ measuring range with 1μ resolution
  • 30x-2,000x high power zoom lens with long working distance
  • software measurement with auto focus and edge detection
  • price range $17,000
Automated, motorized XYZ measuring

  • fully automated programmable XYZ vision measuring system
  • 8″x4″x5″ measuring range with 0.5μ resolution
  • high power objective up to 4,000x
  • programmable lighting, stage movement, auto software measurement
  • price range $26,000
VZM-2000HP

Vision Measurement System 8"x4"x5" with Auto Focus

Vision Measurement System 8″x4″x5″ with Auto Focus

VZM-2000HP

VMS-1286XYZ

High power zoom measuring system for wafer/IC metallurgic

  • 30x-2,000x high power zoom lens with long working distance
  • 2.0 MP digital USB SONY camera
  • ring light, coaxial light, back light
  • measurement software PLUS perfect focus for infinite depth of field image
  • price range $12,000
12″x8″ for large panel measurement

  • manual XYZ vision measuring system
  • 12″x8″x6″ large measuring stage with 1μ resolution
  • easy to use software measurement with DRO
  • price range $18,000
instant measurement system IMS-45

IMS-45

Instant Measurement System

  • instant measurement of multiple parts all the same time with 1 click in seconds
  • automatic detecting features and edges for auto measurement
  • easy to program and user friendly
  • 4.5″ field of view, competitive pricing, reliable



Applications:

  • medical devices
  • part measurement
  • PCB bare board, BGA, SMT
  • semiconductor, micro electronics
  • wire bonding, hybrid
  • metal, materials
  • R&D
  • digital microscope
  • general inspection, documentation, measurement
  • video comparator
