LX-100 Series Auto-Focus LCD Microscope Measurement System

Best-image LCD microscope now with Auto-Focusing and Images Stacking!

Caltex Retina Display 1920x1080 Full HD USB SD ruler mouse

Auto Focus – Full 1080p HD 60 FPS – Retina Display – SD card – Measurement Functions

$3,000+ price range Get Price Quote Download Brochure PDF

Quick links to LX-100 features:

Auto-Focus Inspection Measurement 3D BGA HighPower Applications Models Specifications

New Auto Focusing

The Auto-Focusing feature on a digital microscope makes routine inspection faster and easier. The user can choose from continuous auto-focus, one-click auto-focus, or manual focus. By clicking any area of interest on the screen the camera will automatically focus within a fraction of a second without manually moving the focus block up and down for tedious focusing. This new feature makes the LX-100 HD USB microscope more ergonomic than ever before.

Click on the area of interest to focus

Continuous Auto-Focusing

3D inspection makes easier with auto-focus

Infinity Depth of Focus for Perfect-Focus Image

Automatic Live Photo Stitching for Large Area Image

LX-100 Zoom Lens with Auto Focus 6MP Measurement Camera LX-100 Zoom Lens with 4K 8MP Measurement Camera





Inspection with Retina Display

LX-100 with Ultra Sharp 12″ Retina Display for direct line of sight and AMAZING image details.

  • 12″ UltraSharp Retina Display 1920 x 1080 full HD
  • 190 pixels per inch resolution, 4 times more density per square inch than a typical 24″ LCD
  • Direct Line of Sight, placed on desktop or mounted to 360° flexible mount
  • Ergonomic Inspection without eyepieces
Digital HD USB Microscope LX-100 Retina Display

Digital HD USB Microscope LX-100 Retina Display for ergonomic HD inspection

Learn more about Retina Display …


6MP HD Digital Camera

6MP Camera 1920x1080p Full HD at 60 frames per second

  • 60 Frames Per Second Real-Time Viewing
  • Auto Focus, One-Click Focus, Manual Focus
  • Dual HDMI and USB2.0 outputs
  • Perform dimensional measurement directly on LCD, without connecting to computer
  • Capture image and video to SD card without a computer

Learn more about HD60AF camera …

Caltex 1080p HD digital USB microscope logo

15x – 100x Zoom (standard), expandable to 1x – 2,000x

PCB SMT soldering rework and inspection


Measurements without a computer

The latest LX-100 allows you to do measurements with mouse clicks without or with a computer

Easy to use with mouse clicks to measure all dimensions:

  • XY linear distance
  • Parallel lines distance
  • Perpendicular distances from a point to a line
  • Radius
  • Diameter
  • Angle
  • Area
  • Path length
  • Annotation
  • Crosshair
  • Calibration

Measurement Results can be:

  • Save with image as jpg
  • Export out to Excel

Measurement Accuracy:

  • 2 micron (0.000078″)

Measurement Directly on LCD without a computer

Measurement with a computer

(Measurement Software included for Windows 7/8/10 computer.)

HD60 digital USB microscope measurement software screen 1

Easy to use with mouse clicks to measure all dimensions on computer

Measurement Software Video Demonstration

Calibration for measurement takes only 36 seconds:

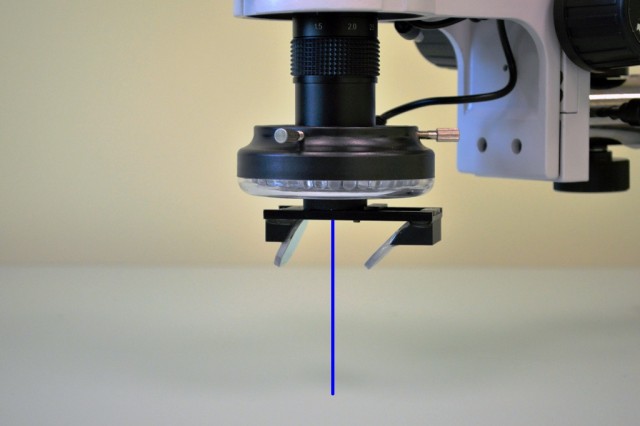

3D Rotational Inspection

LX-100 with 3D oblique angle view and 360° rotation adapter (LX-3D) offers a dynamic 3D Rotational view that brings the microscopic world alive.

  • Offer 3D 360º rotational view
  • 35º oblique angle view, manual rotation.
  • Quick switching between 3D angle view and straight view with a simple sliding
  • Perfect for inspecting J-lead, fine pitch solder joints, medical devices, and 3-dimensional (non-flat) parts

3D Rotation Inspection Video Demonstration




BGA Inspection

LX-100 plus BGA inspection mirror (BGA-HM) enables 90° view & 3D rotation for inspecting BGA solder joints down to 0.002″ ball height

  • 90º view into BGA solder joints
  • 3D rotation for viewing top and bottom joint interfaces
  • Robust & Easy to use. Just place the inspection mirror next to the BGA package
3D BGA inspection view

3D BGA inspection view

Learn more about BGA Inspection Mirror BGA-HM…

BGA Inspection Video Demonstration

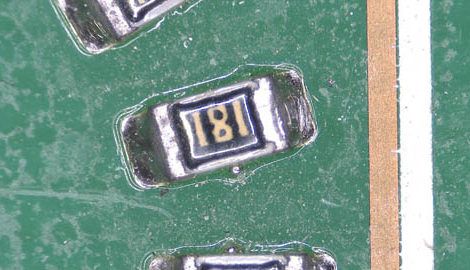

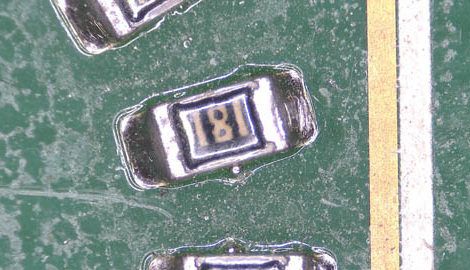

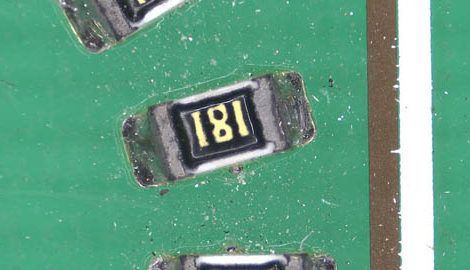

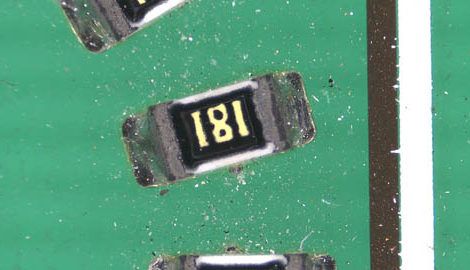

Polarizer (Polarizing Filter) for controlling surface glare (POL-RL)

Learn more about Polarizer




UV Light (Black Light) for Conformal Coating Inspection

Turn LX-100 into Conformal Coating inspection system with Black UV Light

  • UV Ring Light (Black Light) 400nm wavelength for Conformal Coating Inspection
  • Interchangeable between regular white LED ring light and UV ring light
  • Interchange in seconds, add-on anytime

Learn More about UV Black Light

Caltex UV Ring Light Black Light for conformal coating inspection






High Power Zoom Option

for IC/wafer and metallurgic cross-section

LX-100 is flexible and expandable. It can be configured with an infinity high power objective lens and coaxial lighting for examining IC/wafer and metallurgic cross-section

LXM-1000-TSBL-HD60 LCD24

LX-1000 with LH-10x Infinity High Power lens and LX-CA coaxial lighting

Optional Lens

Total Magnification

Description

LH-5 75x – 500x 5x infinity high power objective, NA 0.13, 44.5mm WD
LH-10 150x – 1,000x 10x infinity high power objective, NA 0.28, 34mm WD
LH-20 300x – 2,000x 20x infinity high power objective, NA 0.29, 31mm WD
LH-50 750x – 5,000x 50x infinity high power objective, NA 0.42, 20.5mm WD
LH-100 1,500x – 10,000x 100x infinity high power objective, NA 0.55, 12.5mm WD
LX-CA-LED   Coaxial polarizing light module with LED light source



Sample IC Images with High Power Zoom LX-1000

Sample cross section metallurgic with High Power Zoom LX-1000






Medical Device Inspection with LX-100

Stent Inspection

Medical Devices Video Demonstration






The BEST HD digital USB microscope

LX-100 is the best 1080p HD digital USB microscope that offers 60 frames per second real-time Full HD Video Inspection on LCD for PCB and Medical Device inspection. With standard zoom 15x-100x and LED illumination, the LX-100 video microscope will reduce eye strain, work fatigue, and increase productivity where stereo zoom microscope inspection can be upgraded. With a touch of a button, the inspector can capture images or record videos to an SD card without a computer. The engineer can connect LX-100 digital USB microscope to a computer for real-time viewing and performing dimensional measurements on the computer. LX-100 is the affordable and best image quality 1080p HD digital microscope inspection system that offers a lot more than an eyepieces stereo zoom microscope.

  • Zoom 15x-100x standard, expandable to 1x-2,000x.
  • 1080p HD real-time live image viewing with Ultra Sharp Retina Display
  • Measurement functions of XY, line, diameter, radius, area, angle directly on LCD display without a computer (New Features)
  • Measurement software included for measuring on computer






Key Features

  • 1080p Full HD 60 frames per second Real-Time, no ghost image, no lagging
  • 15x – 100x Zoom Standard
  • Expandable to 1x – 2,000x with optional lenses
  • Straight view, 3D Oblique Angle view, 90° Side view (BGA)
  • Capture Images & Record Video to SD card without a computer
  • Dimensional Measurements with the mouse directly on LCD without connecting to computer
  • Measurement Software for computer USB2.0 mode (included)
  • LED ring light for normal inspection
  • UV ring light (blacklight) for conformal coating inspection (optional)
  • Coaxial light (bright field imaging) for IC wafer and metallurgical viewing
  • Boom Stand for large PCB up to 48″, Track Stand with LED Back Light for small parts up to 10″, Compact & Light Weight Post Stand can be configured with LX-100
  • Low Cost and High Definition Digital Microscope System






Applications

  • Soldering, Rework SMT solder joints inspection
  • Medical devices inspection and assembly
  • stent inspection
  • Material and metal research
  • Industrial QC inspection
  • Microscopy documentation
  • Failure analysis






LX-100 Model Configurations & Options

LX100-HD60 can be configured with different LCD and Stand options, as outlined below.

LX100-HD60 Model Configuration
  No LCD 12″ LCD 24″ LCD
Boom Stand LX100-HD60-BS LX100-HD60-L12-BS LX100-HD60-L24-BS
Track Stand LED Backlight LX100-HD60-TSBL LX100-HD60-L12-TSBL LX100-HD60-L24-TSBL
Post Stand LX100-HD60-PS LX100-HD60-L12-PS LX100-HD60-L24-PS



Digital HD USB microscope Retina Display LX-100-HD60L12-BS

LX-100-HD60L12-BS: LX-100 with 1080p 6MP HD camera and 12″ Retina Display 1920x1080p, on boom stand






Digital HD USB microscope LX-100-HD60-BS LCD-24

LX-100-HD60-BS with LCD-24: LX-100 with 1080p 6MP HD camera with desktop 24″ HD LCD 1920x1080p, on boom stand






Digital HD USB microscope Retina Display LX-100-HD60L12-TSBL

LX-100-HD60L12-TSBL: LX-100 with 1080p 6MP HD camera and 12″ Retina Display 1920x1080p, on track stand with LED backlighting






Digital HD USB microscope LX-100-HD60-TSBL LCD-24

LX-100-HD60-TSBL with LCD-24:: LX-100 with 1080p 6MP HD camera with desktop 24″ HD LCD 1920x1080p, on track stand with LED back lighting






Digital HD USB microscope LX-100-HD60-PS LCD-24

LX-100-HD60-PS with LCD-24: LX-100 with 1080p 6MP HD camera with desktop 24″ HD LCD 1920x1080p, on post stand with focus block






LX100HD60L12PS Caltex 3D Digital Microscope Measurement System

LX-100-HD60L12-PS: LX-100 with 1080p 6MP HD camera with 12″ Retina Display 1920x1080p, on post stand with focus block






LX-100 micro zoom lens can be factory configured for the following zoom range for the same price:

  • LX-70 (10x-70x) for low magnification, wide field of view
  • LX-100 (15x-100x) for typical SMT and Medical Device Inspection
  • LX-200 (30x-200x) for microelectronics
  • LX-400 (60x-400x)



Comparing LX-100-HD60L12 models LX-100-HD60L12-BS LX-100-HD60L12-TSBL LX-100-HD60L12-PS
LX-100 Zoom Lens 15x-100x Yes Yes Yes
HD60 HD USB Camera

12″ UltraSharp HD Retina Display

Yes Yes Yes
Multi-position multi-angle boom stand (BS) Yes
Track Stand with LED backlighting Yes
Post Stand with base and focus block Yes
3D Angle View Rotational Adapter (LX-3D) Optional Optional Optional






Compare LX-100-HD60 models LX-100-HD60-BS LX-100-HD60-TSBL LX-100-HD60-PS
LX-100 Zoom Lens 15x-100x Yes Yes Yes
HD60 HD USB Camera Yes Yes Yes
Multi-position multi-angle boom stand (BS) Yes
Track Stand with LED backlighting Yes
Post Stand with base and focus block Yes
Desktop 24″ HD LCD (LCD-24) Optional Optional Optional
3D Angle View Rotational Adapter (LX-3D) Optional Optional Optional






Specifications

LX-100

 Specifications

HD60 camera 1080p HD 6MP Camera, HDMI & USB2.0 outputs, SD card for image & video capture. 60 FPS on HDMI, 30 FPS on USB2.0.
Auto Focus Auto Focus, One-Click Focus, Manual Focus
LCD-12 Retina UltraSharp HD Display 12″ 1920×1080, HDMI input.
LCD-24 24″ LED Backlit, 1920×1080
Zoom Magnification 15x-100x
Zoom Range 0.7x-4.5x (1:6.5 zoom ratio)
Working Distance 96mm
Field Of View 18mm-2.7mm
Expanded Magnification 4x-2,000x
Expanded Field of View 0.3mm-77mm
Working Distance Range 46mm-331mm
Illumination LED ring light with intensity adjustment
Power Supply 110-220V AC 50/60Hz
Measurement Software Measurement software with Extended Depth of Focus and Photo Stitching functions for PC Windows 10/8/7
Computer Requirements Windows 10/8/7 and USB 2.0 port
Warranty One Year Warranty

Stands


PS Post stand with focus block (PS)
TS Track stand with focus block (TS)
PSHF Post stand with backlighting (PSHF)
TSBL Track stand with LED backlighting and focus block (TSBL)
BS Multi-position multi-angle viewing boom stand with focus block (BS)
HA Hydraulic arm stand mounting to the table edge, with focus block (HA)

Options

Lens Options



3D Angle Lens Adapter

LX-3D 3D 360° manual rotation with 35° Oblique angle view

Lens Adapters

LA-03 0.3x reducer, 331mm WD
LA-05 0.5x reducer, 199mm WD
LA-075 0.75x reducer, 131mm WD
LA-15 1.5x magnifier, 60mm WD
LA-20 2x magnifier, 46mm WD
HL-5x 5x infinity high power objective, NA 0.13, 44.5mm WD
HL-10x 10x infinity high power objective, NA 0.28, 34mm WD
HR-20x 20x infinity high power objective, NA 0.29, 31mm WD

Lighting options

LED-UV UV LED Ring Light (Black Light) for Conformal Coating Inspection
LX-CA Coaxial lighting module for LX-100
LX-CA-LED LED point light for coaxial lens module for LX-CA

XY stage options

XY-76 75x56mm travel, with 116×96mm backlight window. For track stand and post stand with backlighting
XY-76R XY stage of 180X155X34mm, with XY Travel distance: 75X55mm, plus rotational dial. For track stand and post stand with backlighting
XY-1711 XY manual stage for easy movement of large PCB board, 17″x11″ size, 11″x9″ travel range
XY-1711G XY manual stage for easy movement of stencil, 17″x11″ size, 11″x9″ travel range, glass plate for backlighting

Advance measurement software options

IMS-1000 Advance dimensional measurement software
XY, circle radius & diameter, angle, area, center to center.
export to Excel, infinity depth of focus, photo stitching
image comparison, overlay for quick gauging go/no go
SM-1 Stage micrometer for calibration



LX-100 Lens Magnification and Field Of View

Lens Adapter Working Distance (mm) Working Distance (inch) Magnification FOV (mm)
0.3X 331 13″ 4x – 30x 59-9
0.5X 198 7.8″ 7x – 50x 35-5
0.75X 131 5.2″ 11x – 75x 23.5-3.6
1.0X 96 3.8″ 15x – 100x 17.6-2.7
1.5X 63 2.5″ 22x – 150x 11.8-1.8
2X 46 1.8″ 30x – 200x 8.8-1.3
