AX-2


Auto Focus HD Inspection System

For Large Inspection Area

The new AX-2 autofocus digital HD microscope offers the amazingly large field of view from 17′ (430mm) to 1″ (25mm) at 12″ working distance with the motorized zoom controlled by a USB mouse. The choice of autofocus, 1-click focus, or manual focus make the inspection process faster and more ergonomic. HDMI output offers 60 frames per second real-time high definition viewing on LCD of any size, or choose the optional 12″ mountable and 24″ desktop 1920x1080p full HD monitor. Micro SD card allows the user to capture photos for documentation without the need of connecting to a computer. The wide-angle, large-area field of view HD camera is perfect for inline PCB inspection on the conveyor, and for inspection and assembly of large medical devices.


Key Features

  • Auto Focus and Motorized Zoom
  • 0x – 22x (22x-132x digital)
  • Large Inspecting Area From 25″ To 1″
    • 25″ – 2.5″ at 18″ Working Distance
    • 17″ – 1.75″ at 12″ Working Distance
    • 6″ – 1″ at 4″ WD Working Distance
  • Working Distance 4″ to infinity
  • Capture image and record video
  • 1920x1080p Full HD 60 frames per second real-time
  • HDMI connection, Micro SD for capturing photos



$1,650 Get Price Quote

Auto Focus

  • Fast Auto-Focus
  • Working Distance 4″ to infinity
  • Motorized Zoom with mouse control


Large Inspection Area Demonstration Video


Wide Zoom Range


Application Images

  • Capture image and record video
  • 1920x1080p Full HD at 60 frames per second real-time viewing



Typical Applications

  • Conveyor Inline Inspection
  • Medical Device
  • Assembly
  • PCB/SMT Inspection and Rework
  • Quality Control Inspection




System Configuration

AX2-AA with 24″ LCD

Large field of view, Auto Focus, Zoom, Inline Inspection, $1,500

AX2-BS with 24″ LCD

Large Field of View, Auto Focus, 1080p HD output, digital microscope inspection



Auto Focus HD Microscope Inspection System (AX-2)

  • 2MP CMOS camera, 60FPS HDMI output
  • Auto Focus, 1-Click Focus, Manual Focus
  • 1x to 22x Zoom, 22x-132x Digital Zoom
  • TF card slot for image & video capture (TF card not included)
  • Mouse for camera setting and zoom control

LED Ring Light (LED-RL)

  • LED Ring Light with intensity control for extra illumination

Polarizer for LED Ring Light (POL-RL)

  • Polarizer Adapter for LED Ring Light

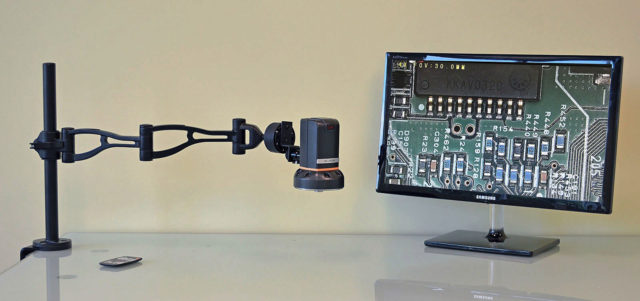

Articulating Arm Stand for AX-2 Microscope (AX2-AA)

  • Easy Extension and Retraction
  • Low Cost

BS-2 Gliding Boom Stand with Base (BS2)

  • Easy gliding horizontally
  • Focus mount with multi-angle tilting for any angle viewing
  • Focus control

24” HD LCD 1920x1080p desktop, HDMI input (LCD-24)

  • Desktop and VESA mount ready
  • HDMI & VGA ports

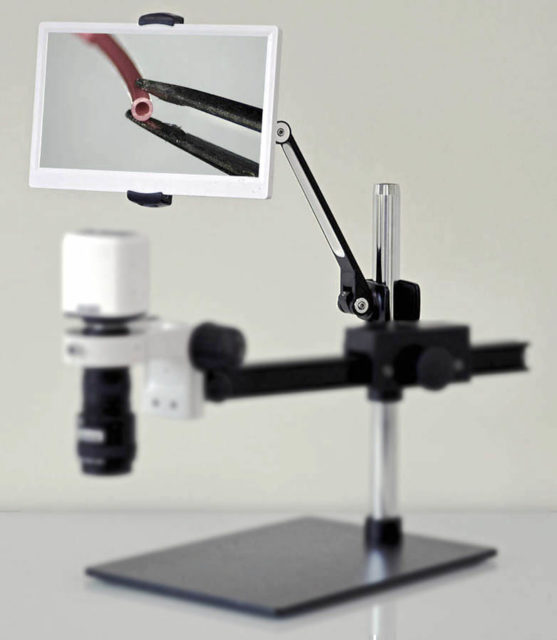

12″ Retina HD LCD (LCD-12-FM)

  • Mount at any angle for direct line of sight inspection
  • 1920x1080p HD resolution




Specifications

AX-2

Focus Auto focus, 1-click focus, manual focus
Image Sensor 2 Megapixel CMOS color sensor with HDR
Output HDMI, 1080p at 60 frames per second
Scanning Progressive
Shutter Speed 1/60s to 1/10,000s
Camera Setting White Balance, Exposure, Shutter Speed, Brightness, RGB color control
Camera Control USB Mouse (included)
Cross Hairs Up to 4 sets of cross hairs, moveable and color adjustable
Media Storage TF (micro SD) card.  **TF card is not included**
Power Supply DC 5V
Zoom 1x to 22x
Digital Magnification 22x-132x
Field of View 16” to 1”
Working Distance 10 cm (4”) to infinity



AX-2 zoom range and working distance

Working Distance Maximum Field Of View Minimum Field Of View Magnification (based on 24″ LCD)
18″ (457mm) 25.5″ (647mm) 2.5″ 0.8x – 8x
12″ 17″ 1.75″ 1.2x – 12x
10″ 14.5″ 1.625″ 1.4x – 13x
8″ 12″ 1.375″ 1.7x – 15x
4″ (101mm) 6″ 0.9375″ (24mm) 3x – 22x



$1,500 Get Price Quote

Other Auto Focus Microscopes

VIP-50-AF2

  • Auto Focus
  • 1x-50x

LX-100-AF2

  • HD + Measurement
  • 1x – 2,000x
AF-HD-AA

  • Auto Focus for Inline PCB Inspection
  • 6x – 130x
OMNI

  • High End Auto Focus with Measurement
