OMNI


OMNI Digital Microscope Measurement System

Award Winning, Auto Focus, 1080p Full HD, Measurement with Auto Calibration, Comparison, Infinity Depth of Focus and more packed in the next generation of all-in-one OMNI digital microscope that is user friendly and affordable.

10,000 Range Price Quote

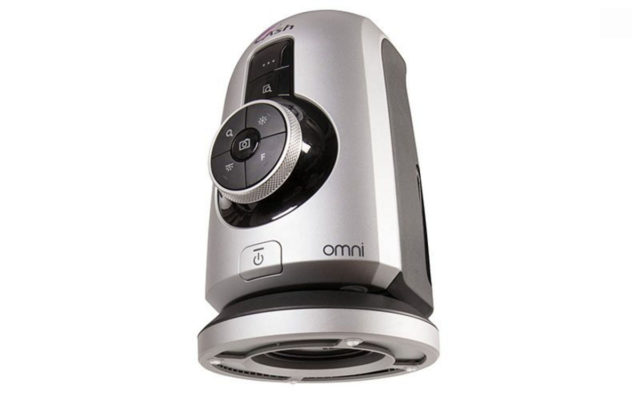

Caltex OMNI Digital Microscope Measurement System is an integrated full HD (1080p) digital microscope and measurement system that operates without a PC.  The custom platform incorporates a highly configurable and upgradeable set of inspection and measurement applications such as auto focusing, focus stacking, 2D measurement, side by side and overlay image comparison, custom on-screen reticle, and lens distortion correction.

The OMNI’s platform has a powerful image processing and control engine that delivers superb full HD live video image quality at 60 frames per second enabling it to be used as a solution in a broad range of quality control, testing, rework, assembly, inspection and documentation tasks.

The GUI (Graphical User Interface) is a custom designed mouse-controlled interface delivering intuitive and efficient operation and control of the full application suite.

Its unique ability to stay in calibration over the entire zoom range is one of many features that differentiates this system from other digital inspection systems.

Camera control functions (auto/manual focus, exposure, gain, brightness, white balance) ensure ultra-sharp, high contrast imaging.

The OMNI’s quick response, cable-free interchangeable illumination modules with intensity and quadrant control, ensure shadow-free illumination and glare reduction.






2D Measurement

Intuitive on screw full 2D measurement application. Simply draw Measurements, Shapes and add Annotations onto a live or static image and save direct to internal memory or external storage options. Features include: point to point, diameter, angle, adjustable X-Y grid, shapes and annotation.








Calibration Tracking through Zoom Range

No user calibration required as the Omni tracks its own calibration even while zooming. Measurements automatically adjust to the zoom.








On Screen Graticules

Create custom graticules on the system using the measurement app, save to internal memory and recall as required. The Omni can display the graticule file as an overlay on the live camera image. When a Graticule is recalled the Omni automatically zooms to the stored zoom level. Graticules can be used for accurate measurements and go-no go testing etc.








Infinity Depth of Focus with Image Stacking

View a sample with different layers all in focus at the same time. Omni automatically captures several images from 2 to 12 at different focal depths and creates an image based on the sharpest regions from each of these separate captures.








Image Comparison

Side by Side: Visually compare your live sample image to a stored master image in the form of a split screen. Add notes through annotation and save the comparison image for documentation and traceability. Overlay: Aids the user to spot defects by overlaying and flashing the live image and the stored master image.








Group Viewing and Training

Perfect for group viewing, training, ergonomic inspection, presentation and documentation.




System Configuration

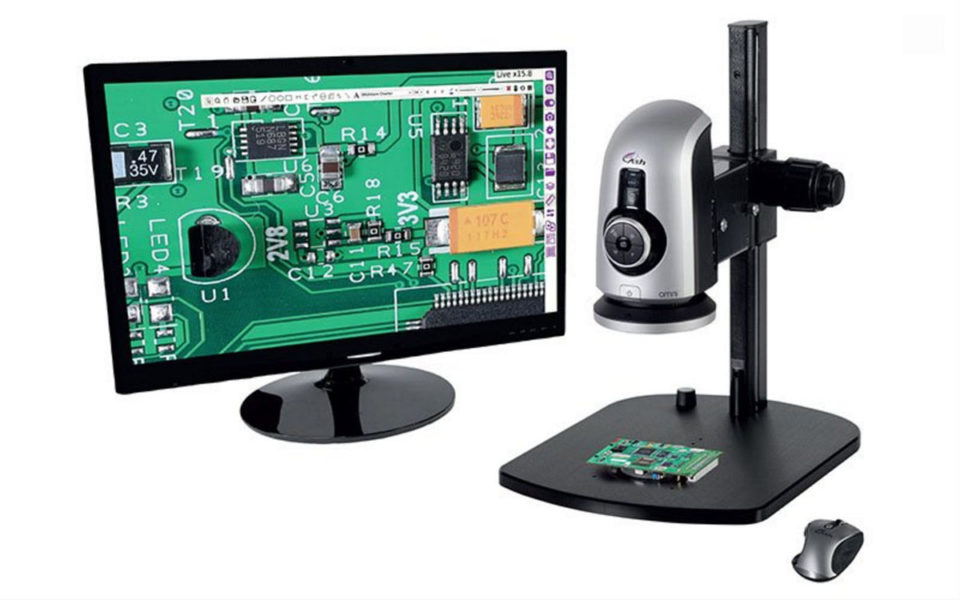

OMNI can be configured with different stands and LCD sizes:

[ezcol_1half]

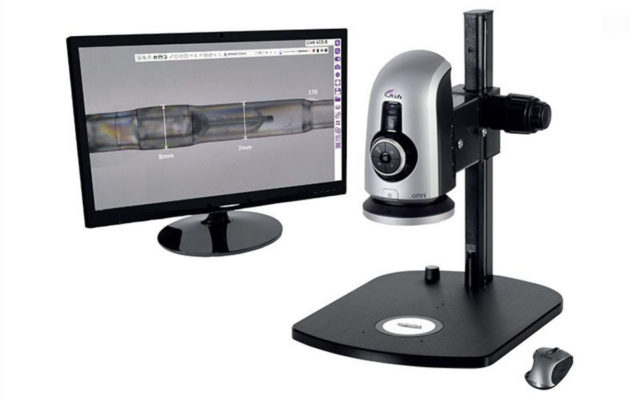

  • Track stand with back lighting (TSBL)

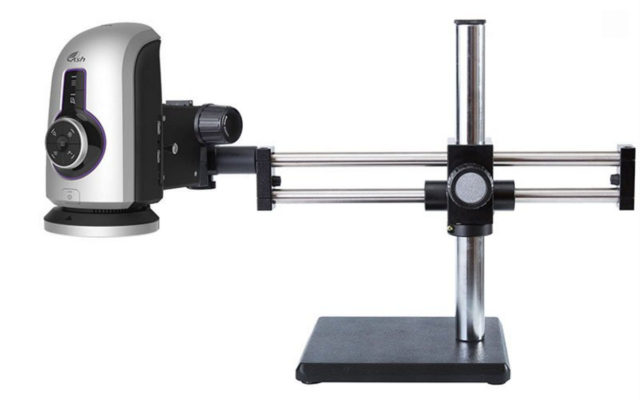

  • Boom stand (BS)

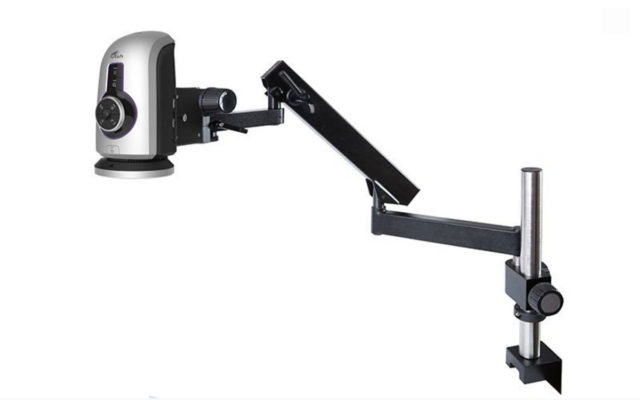

  • Articulating arm stand (AA)
[/ezcol_1half] [ezcol_1half_end]
  • LCD-24: 24″ desktop 1920x1080p Full HD LCD

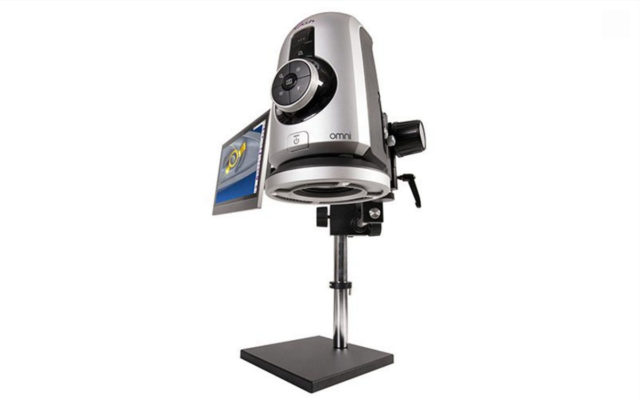

  • LCD-12: 12″ Ultra-Sharp Retina HD 1920x1080p LCD
  • L12-360 mount: 360º any angle viewing, flexible mount kit for LCD-12, clamp to track stand, boom stand or work bench
[/ezcol_1half_end]




Quick Comparison of different HD models >



10,000 Range Price Quote






Specifications



Zoom Range (with supplied 5D lens) 2.5x – 122x
Camera 1920 x 1080 Resolution 60fps 30x Optical, 2x Digital
Image Capture

Internal Image Capture Removable USB

Image Capture Transfer Images to PC via USB Cable

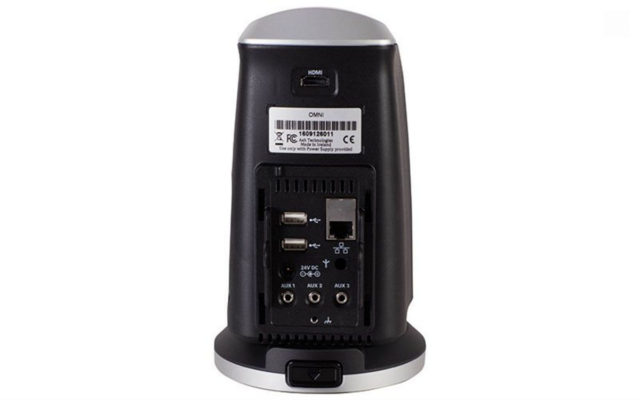

Input/Output HDMI Out USB 2.0 Port x 4 RJ45 Ethernet Connector (for networking) General Purpose IO x 3 DC Power Jack (24V)
Monitor Connections HDMI/DVI
Monitor Requirements HD Ready or Full HD (Recommended)
Operating Temperature Storage: -10C – 60C Operating 5C – 40C
Power 24W
Dimensions 216mm x 125mm x 136mm
Weight 1.75Kg



Magnification*


LENS (DIOPTRE) (MM) MAX HEIGHT (MM) MIN HEIGHT (MM) MINIMUM MAGNIFICATION* MAXIMUM MAGNIFICATION* OPTICAL/DIGITAL FIELD OF VIEW AT MINIMUM MAG. (MM) FIELD OF VIEW AT MAXIMUM MAG. (MM) OPTICAL/DIGITAL MAX. & MIN. DEPTH OF FIELD
5 200 170 2.5 62/122 X: 231 Y: 136 X: 8/4 Y: 5/2 78 .50
10 100 85 4 121/237 X: 60 Y: 50 X: 5/2 Y: 3/1 57 .20








System Contents

  • Omni
  • Quadrant Controllable Ring Light
  • Lens 5x
  • Mouse & Mat
  • Keyboard
  • Power Supply
  • HDMI to HDMI Cable
  • Mini USB Cable
  • USB Memory Stick (8gb)
  • Grounding Cable
  • 2 x Arms Brackets (for stand mounting)
  • Arm Receiver
  • User Manual
  • Cleaning Cloth
