HD60m


1080p HD 6MP digital USB microscope camera (HD60m)

The best 1080p HD digital USB microscope camera just gets better and more functions. Full measurement functions for HDMI and USB2.0 outputs simultaneously


HDMI directly to LCD + USB2 to PC Capture images to SD without a computer Measuring on LCD without PC Dual Measuring Capabilities: LCD and Computer

2019 New with Auto Focus!

The latest evolution of digital camera for microscopes now comes with Auto Focus and Measurement functions, better high-resolution HD image and work on LCD directly or the computer by USB connection.

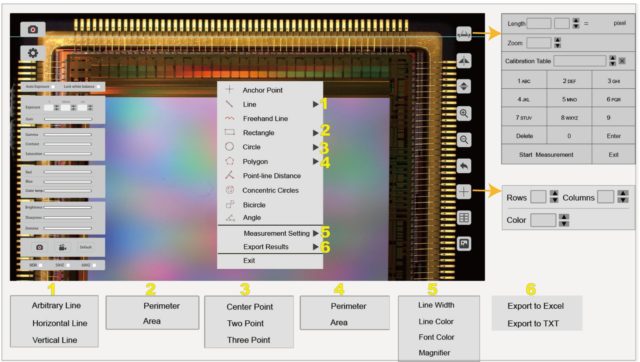

Measuring directly on LCD without a computer

  • On Screen menu with simple mouse clicks
  • Measure line, circle, angle, area, XY, concentric
  • Export to Excel
  • Capture image with measurements
  • Record video




Multiple Cross Hairs with Divisions

New features


3rd Generation 1080p Full HD image

  • 60 frames per second
  • Real time viewing, no lagging
  • HDMI connection to any LCD
Caltex 1080p HD digital USB microscope logo

Ultra Sharp Retina Display with Amazing Details

  • 1920×1080 Full HD
  • 60 frames per second real-time
  • Ultra sharp details
  • Same as your direct eye viewing

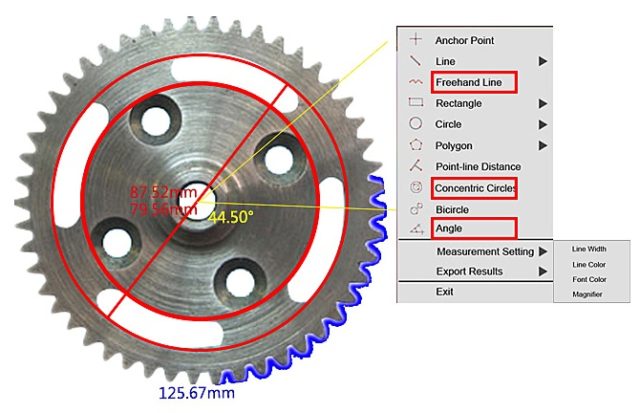

Perform Measurements on LCD without a computer

  • Save multiple calibrations
  • Perform all dimensional measurements with mouse clicks
  • Measurement functions: point-to-point, circle radius & diameter, area, angle, concentric circle.
  • Save measurement results with images
  • Export results to Excel




Perform Measurement on computer

  • Measurement Software included for Windows 7, 8, 10.
  • Easy mouse click to measure
  • Measure line, circle, angle, area, XY, concentric
  • Export to Excel
  • Capture image with measurements



HD60 digital USB microscope measurement software screen 1






Multiple Outputs

  • HDMI to LCD
  • USB to computer at the same time
  • SD card to capture image and video
Multiple outputs: HDMI to LCD USB to computer SD card to capture image and video



Caltex digital USB microscope SD card logo

Capture images & video to SD card

  • Easily transfer to computer
  • Compatible with any SD card
  • SD card included



USB 2.0 connection to computer

  • Live viewing, capturing, recording on computer
  • Measurement on computer
  • Software & cable included
Caltex digital USB microscope USB logo



Caltex 1080p HD digital USB microscope MOUSE control

On Screen Menu

  • Mouse Controlled
  • Capture image. Record video
  • Self-contained, no need for computer




The most flexible and high performance multi-mode 1080p HD microscope camera is now 3rd generation (2016). Built on success of great detailed HD image and multiple HDMI/USB/SD connections, HD60m is perfect for today’s HD LCD direct viewing of any microscopes. Now with 60 frames per second, any microscopic images come alive real-time with HD details. Built-in SD card with mouse driven menu makes it as easy as one click to capture images or video without even connecting to a computer. Measurement software for computer allows you to perform precision dimensional measurement without additional cost. All on-screen menu easily controlled by USB mouse, SD card, HDMI & USB cables are all included in standard package. New features of measuring on HD LCD and multiple cross hairs without extra cost.

Key Features

  • 1080p HD 60 frames per second real-time live image on LCD with HDMI, 2nd generation
  • USB2.0 connection to computer at the same time for dual outputs
  • Directly capture image and record video to SD without a computer
  • Directly measurements on HD LCD without a computer
  • Measurement software included for computer USB
  • On screen menu control by USB mouse (included)
  • Best detailed images possible for digital microscope camera

Application Images




Universal Standard C-Mount

Standard C-mount connection for all microscopes and lenses

1080p HD digital microscope camera HD60m for stereo microscope



Standard C-mount connection




Specifications

HD-60Specifications
Camera sensor6MP (3264 x 1836) Color CMOS with dual FPGA processors
Sensor Size1/2.8 inch
2.8 x 2.8 micron pixel size
OutputHDMI, USB2.0, SD Card
Live Resolution1920 x 1080
Frame Rate1920 x 1080 60 frames per second via HDMI
1920 x 1080 30 frames per second via USB2.0
Auto FocusContinuous, One-Click on Area of Interest, Manual
Image CapturingHigh-speed SD card
Image Capture Resolution1920 x 1080 on SD card
3264 x 1836 on computer USB2.0
Video Recording1080p 30 fps in SD card
1080p 30 fps in PC
Menu ControlOn/Off button & USB Mouse for menu control
Exposure Time0.001 sec to 10.0 sec, Auto or Manual
White BalanceAuto or Manual
Image SettingGain, Gamma, Saturation, Contrast, Sharpness,
Image ProcessingImage comparison, Image browing
Software MeasurementDimensional measurement software for computer USB2.0
Infinitive Depth of Focus
Photo Stitching
WindowsWindows 10, 8, 7.
MacMac OS X
Camera InterfaceStandard C-mount for microscope
Power Supply110V-220V
Packing ListHD60 camera, HDMI cable, USB2.0 cable, 12V power adapter, SD card, Mouse, Measurement Software CD
