VMS-1286XYZ


VMS-1286XYZ video measuring system



XYZ video measurement video comparator system 12"x8'x6"

Large 12″x8″x6″ manual XYZ video cmm measurement systems featuring 1 micron resolution, high precision XYZ 3 axes measurement, digital read out (DRO) on computer. VMS-1286XYZ is an easy-to-use, powerful video based 3-axis manual measuring system. 3M digital camera for ultra high resolution image and sub-pixel accuracy measurement. Measurement software with selectable resolutions balances the speed and image resolution.

Key Features

  • 3 Mega Pixel (2048×1536) Color digital camera
  • 12 x 8 x 6 inch XYZ travel
  • 1 um encoder on XY and 0.2 um encoder on Z
  • Navitar 6.5X detent zoom 0.75x-4.5x
  • Zoom magnification 30x-200x
  • Manual LED ring and back light
  • Software Measurement with DRO
  • Dell computer with 22 inch LCD & Windows 7 OS

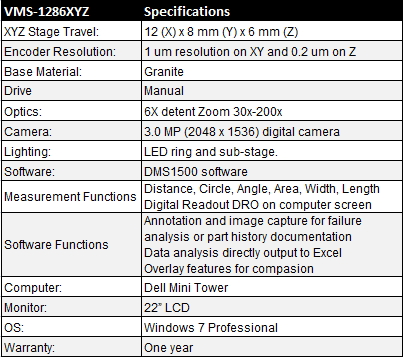

Specifications
