Handheld Digital Microscope HDM4.3


Handheld Digital Microscope for Remote Inspection, all-in-one design, run on batteryHandheld Digital Microscope with measurement
Handheld with 4.3″ display Auto Focus  Measurement Grids  Image Capture

Handheld digital microscope with auto-focus, measurement XY grids, and image capture

The HDM 4.3″ is an award winning inspection magnifier designed with unique display technology and liquid lens technology which delivers bright, sharp and highly contrasted images (480 x 272 pixels). Perfect for stencil inspection, hard to reach area, and portable inspection requirements.




Price $1,099 Ger Price Quote Download PDF brochure

Handheld Portable Inspection, ALL-In-One

The HDM 4.3″ is an award winning inspection magnifier designed with unique display technology and liquid lens technology which delivers bright, sharp and highly contrasted images (480 x 272 pixels) on built-in LCD.

Handheld Digital Microscope for Medical devices and Precision Parts

Handheld Digital Microscope for Medical devices and Precision Parts


Perfect for Stencil and Remote Inspection

Its ergonomic design provides comfortable use in awkward to access areas and its LED illumination modes are ideal for use in poor lighting conditions.

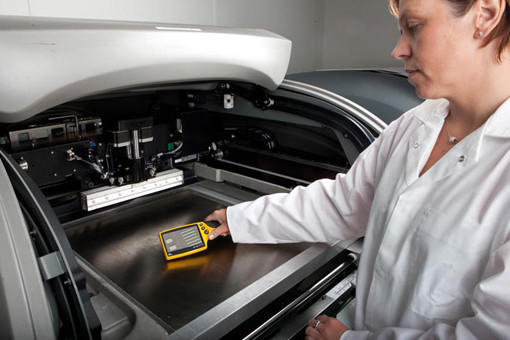

Perfect for Stencil Inspection

Perfect for Stencil Inspection


Measurement Grids and Image Capture

Its unique patent applied for dimensional grids and image capture capability for upload to PC make it an ideal tool for inspection operators and technicians in a wide variety of industries.

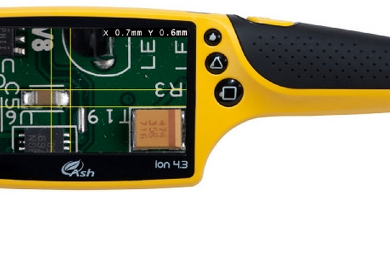

Handheld Digital Microscope with measurement

XY measurement grids

Handheld Digital Microscope for Remote Inspection, all-in-one design, run on battery

Handheld digital microscope with LCD for portability


Zoom

4x-14x


5 Hours Battery

Take portable microscope to anywhere for remote inspection


Applications

  • Perfect for Stencil visual inspection and measurement
  • Portable, remote inspection for hard to reach sample
  • QC inspection and documentation
  • Repair and rework
  • Assembly inspection
  • Non-contact Dimensional Measurements
  • Digital Image/video recording and documentation
  • Information exchange and easy reporting


Key Features

  • Built in 4.3″ high contrast display, 30 frames per second real-time display
  • 4x-14x magnification
  • Auto Focus with liquid lens technology
  • XY Measurement Grids for dimension gauging, accurate to 0.1mm
  • Image Capture directly to unit without a computer
  • Run on battery 5 hours

Specification

HDM 4.3Specifications
Screen size4.3"
Screen resolution480x272
Camera3 MP CMOS sensor
Video frame rate30 frames per second
Magnification7x - 14x close up, 4x-8x far focus range
Depth Of Field3.5cm in overview
1.5cm at close up view
Field Of ViewAt 4x, FOV is 1" (25mm)
At 14x, FOV is 5/16" (8mm)
Dimension cross hairsDimension adjustable grids X and Y
Measurement AccuracyAccurate to 0.1mm
BatteryIntegrated Lithium Ion battery
Battery durationDeliver 5 hours use in full color mode
Charge time 4 hours
ConnectionMicro USB connector. Cable included.
ControlsIntelligent motion based auto power off
LightingIntegrated LED lighting with on/off control
Image captureImage freeze function, stores uo to 100 images
Unit Supply Voltage5V DC, Micro-USB Connector
Weight225g (8 oz)



Price $999 Ger Price Quote Download PDF brochure




Related Products

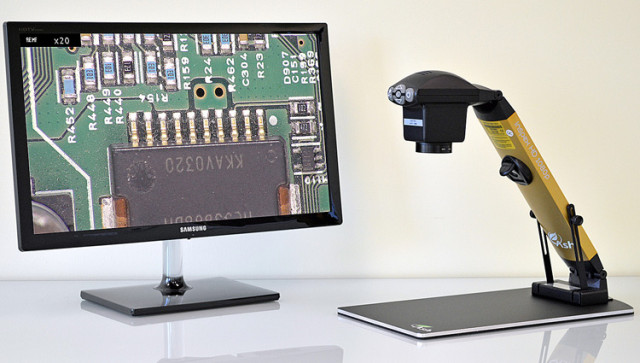

AX-T-1080p Auto Focus 1080p Digital Microscope System

Auto Focus HD Video Inspection System with wide zoom range

Auto Focus HD Video Inspection System with wide zoom range

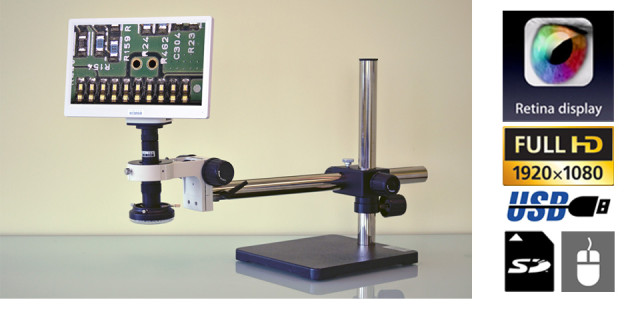

LX-100 HD Retina Display Digital USB Microscope Measurement System
