EX-80HD


EX-80HD Low Cost Digital HD Microscope Measurement System

$1,495 price range Get Price Quote

Dual Outputs HDMI and USB

  • 1080p Full HD Output to LCD
  • High Speed 30 Frames Per Second without trailing or smearing
  • Clear and Real-Time Viewing
  • USB 2.0 to computer viewing
Caltex 1080p HD digital USB microscope logo

Micro SD Card for Capture Image and Video

Capture image and video without a computer Caltex digital USB microscope SD card logo




3.5MP Camera CMOS Sensor

  • Advanced HDR image processing under HDMI mode
  • Reduce light reflection, enhance image resolution

10x – 80x Zoom Lens

  • Most useful medium zoom range for general inspection
  • Exclusive easy camera focusing
  • Variable or fixed focal length

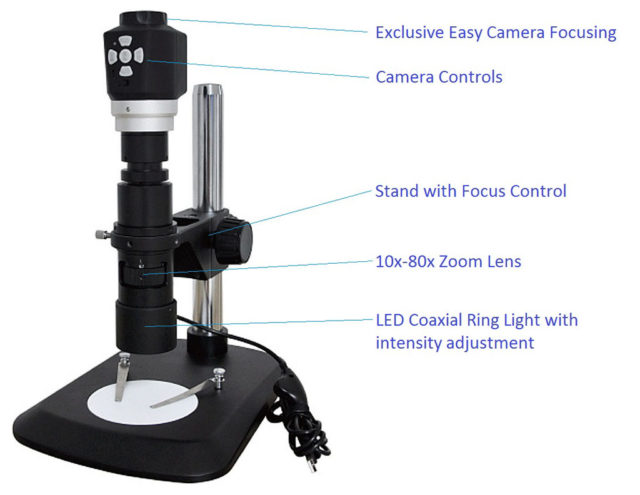

Exclusive LED Coaxial Ring Light with Intensity Adjustment

Including both LED coaxial and ring lights with independent intensity control


Ergonomic inspection and easy operation


Field Of View Zoom Range

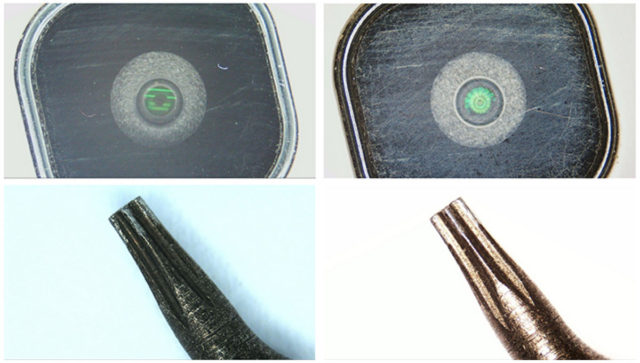

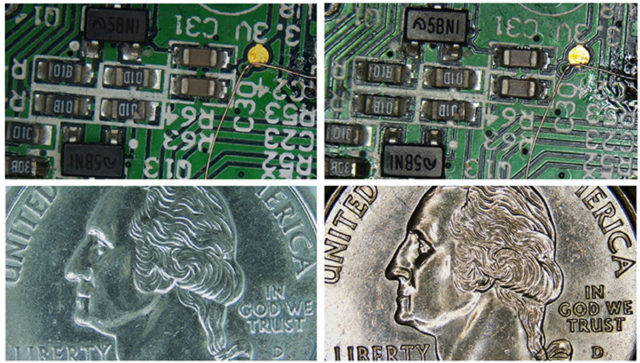

Sample Photos


Measurement Software for Computer

  • Length
  • Radius
  • Angle
  • Area
  • Path Length

EX-80HD Model Configuration

EX-80HD-L12

  • EX-80HD Camera Scope, HD & USB outputs, Measurement Software for PC
  • Post stand
  • 12.5″ Retina HD LCD with mounting arm (mountable on the left or right side)

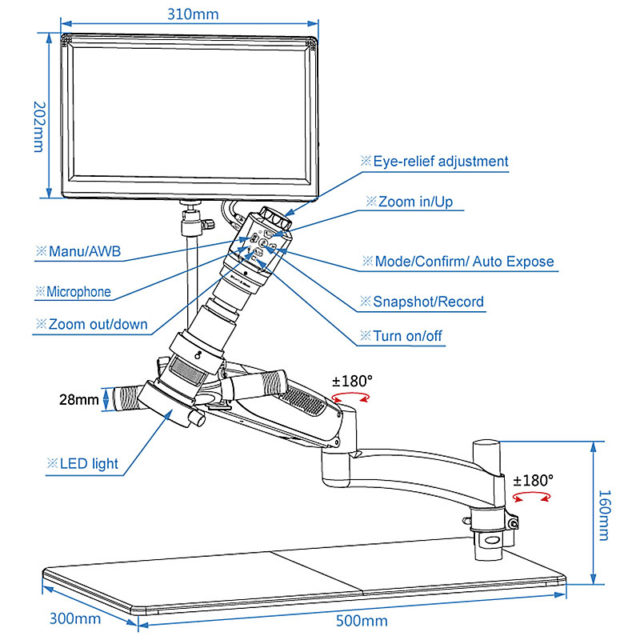

EX-80HD-L12-AA

  • EX-80HD Camera Scope, HD & USB outputs, Measurement Software for PC
  • 12.5″ Retina HD LCD

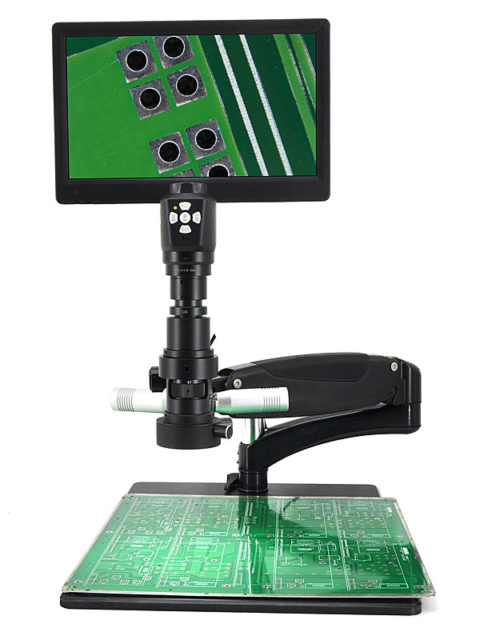

  • Articulating Arm Base

EX-80HD with optional LCD-24

  • EX-80HD Camera Scope, HD & USB outputs, Measurement Software for PC
  • Post Stand
  • Optional 24″ Desktop HD LCD (LCD-24)

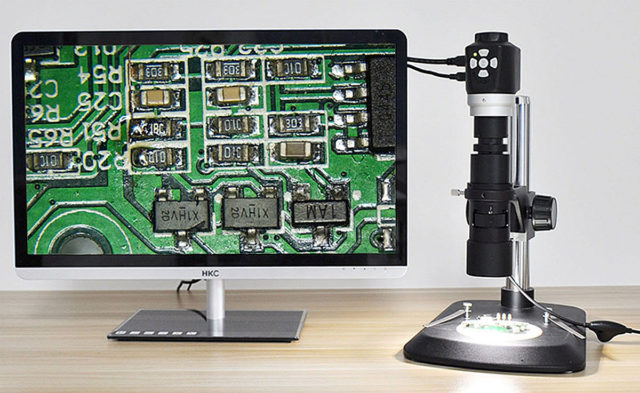

EX80 Digital Microscope Measurement System PCB SMT

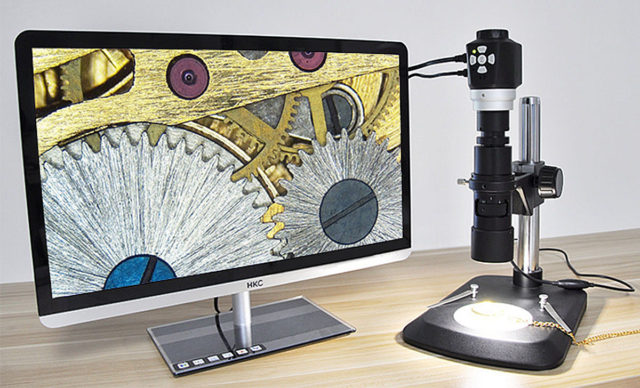

EX80 Digital Microscope Measurement System medical device

EX80 Digital Microscope Measurement Inspection System1


System Contents

  • 3.5 MP HD/USB Camera
  • Zoom Lens 10x-80x
  • Dual Rings LED Lighting
  • HDMI cable, USB2.0 cable
  • Measurement Software CD
  • Power Adapter
  • Post Stand or Articulating Arm Stand




Options

  • Large Boom Stand
  • Articulating Arm Stand
  • 24″ Desktop HD LCD (LCD-24)
  • 12″ Ultra Sharp Retina Display HD LCD (LCD-12)




Specifications

EX-80HD

Specifications

Zoom Magnification 10x – 80x
Optical Magnification 0.28x – 2x
Field Of View Range 29.6 mm – 2.1 mm
Camera Sensor 1/3″ CMOS Sensor
Camera Resolution 3.5 Mega Pixel (2,304 x 1,536)
Camera Pixel Size 2.2 µm x 2.2 µm
Dynamic Range 69.5 dB
Signal Noise Ratio 39 dB
Spectral Characterestics 380 – 650 nm
HDMI Output Resolution 1920 x 1080p 30 FPS. 1280 x 720p 60 FPS.
Image Capture Resolution 2304 x 1536, 2304 x 1296, 1920 x 1080, 1280 x 720, 800 x 480.
Video Record Resolution 1920 x 1080 30 FPS, 1280 x 720 30 FPS, 800 x 480 30 FPS.
Exposure Real-Time Auto, Single Auto, Manual.
White Balance Real-Time Auto, Single Auto, Manual.
Capture Media SD Card (Maximum support 64 GB)
Illumination LED Ring Light with Intensity Adjustment
Stand Post Stand with Focusing and Base
Power Adapter DC 5.0V, 500mA
LCD Display Reqquirements 1920 x 1080p Full HD and HDMI input
Software Interface DirectShow
Computer Requirements Windows 7/8/10, USB2.0

Zoom Magnification Specifications

Zoom Setting

Working Distance (mm)

Field Of View (mm)

Resolution (µm)

0.7x 24 -252 mm 0.5 – 10 mm 16.78
1x 27 – 155 mm 0.5 – 4.5 mm 11.18
2x 81 – 117 mm 0.4 – 0.6 mm 8.39
3x 94 – 111 mm 0.3 mm 6.10
4x 101 – 110 mm 0.2 mm 4.79
5x 103 – 109 mm 0.1 mm 4.79
