LX-70


LX-70 Series

10x-70x detent zoom magnification of LX-70 offers the best combination of magnification and wide viewing area for your inspection, assembly and rework. This zoom range is particularly useful for SMT and PCB inspection with 3-D rotational view, large machining, and medical devices. LX-70 series can be coupled with Auto Focus HD camera, 4K camera, or WiFi camera to meet your application. All cameras are capable of measuring dimensions, capturing photo and recording video for your metrology and documentation purpose. At a comparable price to professional stereo zoom microscopes, LX-70 offers ergonomic, user-friendly, and useful features that the old-fashion stereo microscope cannot rival. There is no better time to upgrade to LCD digital microscope with Auto-Focus, 4K or WiFi camera.


LX-70 Zoom Lens

Good Magnification, Wider Viewing Area, Expandable

  • 10x-70x
  • Expandable to 3x-1,400x
  • Field of View: 1.7mm to 77mm (0.07″ to 3″)
  • Wider Viewing Area than LX-100
  • 3-D Rotational Viewing option available

Available with 6MP Auto Focus Measurement Camera or 8MP 4K Measurement Camera

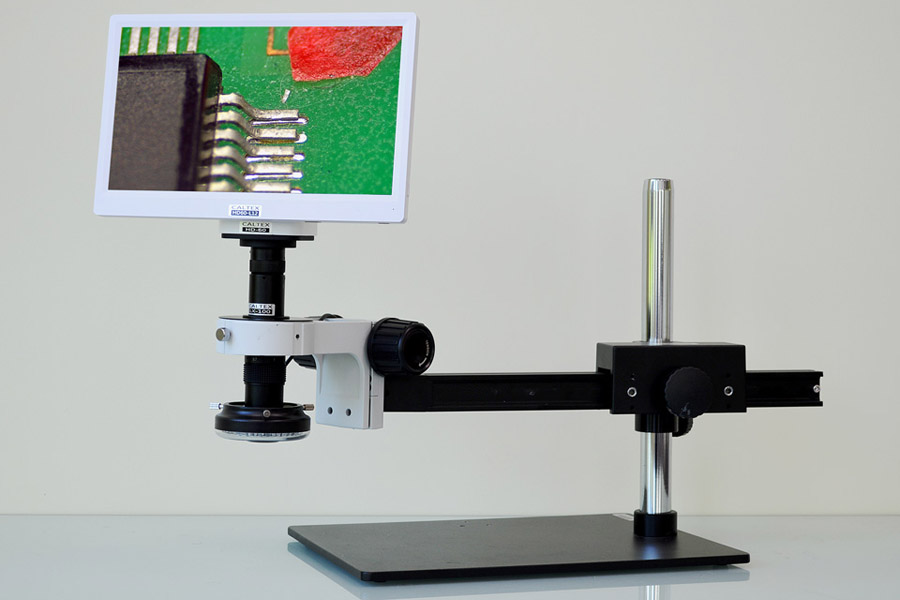

LX-70 with Auto Focus HD Camera

Auto-Focus 6MP HD Camera Features

  • Auto-Focus, Click-To-Focus, Manual Focus
  • 6 MP Camera, 1920x1080p Full HD @60FPS
  • HDMI, USB2.0, SD card
  • Measurement on LCD
  • Measurement Software for Computer

Learn More Auto-Focus Camera

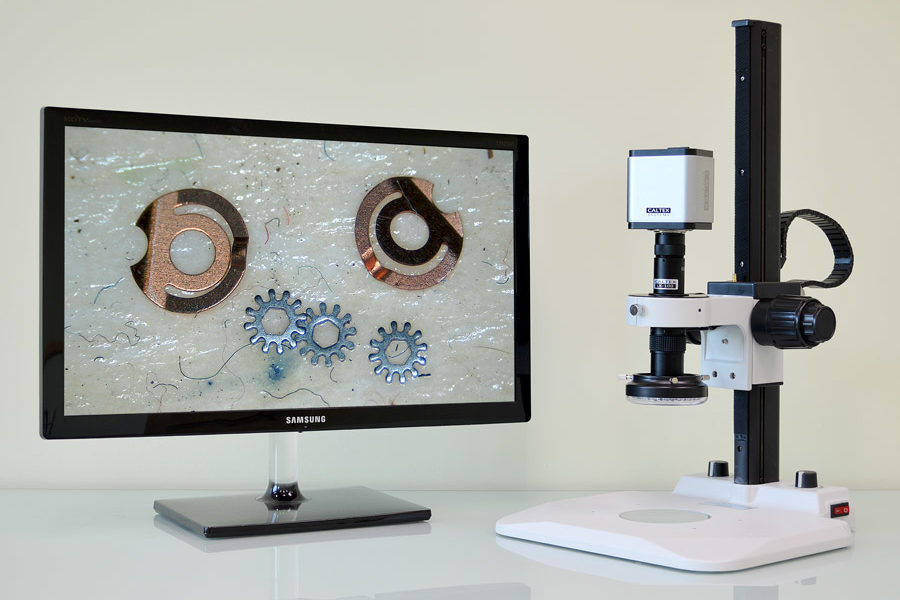

LX-70 with 4K ULTRA HD Camera

4K Ultra HD Camera Features

  • 4K ULTRA HD 8 MP Camera 3840×2160
  • HDMI, GE, USB3.0, WiFi, SD card
  • Measurement on LCD
  • Measurement Software for Computer

Learn More 4K Camera…


Measurement

  • Measure directly on the LCD screen with a simple mouse click
  • Save multiple calibrations
  • Measurement functions: point-to-point, circle radius & diameter, area, angle, concentric circle.
  • Save measurement results with images
  • Export results to Excel
  • No need to connect with a computer

Measurement Software with Powerful Imaging Functions

Real-Time Infinitive depth-of-field fusion of images

  • Capturing images of different focus layer to generate a totally clear and infinitive depth-of-field image in a rapid, accurate and efficient way to surpass the optical limitation of depth-of-field.




Real-Time Image Stitching

  • Creating a large mosaic image of super high resolution in a few seconds while moving the stage.





LCD

12″ Retina Ultra-Sharp LCD can be mounted on HD60 camera for direct line-of-sight ergonomic viewing. 24″ Desktop LCD is ideal for those who prefer a large display and have ample work area. LX-70 system can come without LCD display and be connected to the computer for all inspection, measurement and imaging work.

LCD-12 LCD-24 LCD-24U
  • 12″ Retina HD LCD
  • Mounted on HD60 Camera
  • HDMI Input
  • 24″ HD LCD 1920x1080p
  • Desktop
  • HDMI Input
  • 24″ ULTRA HD LCD 3840×2160
  • Desktop
  • HDMI Input




Stands

All stands come with focus block for focus adjustment. Depending on your part dimensions and the need for backlighting, you may configure LX-70 system with any of stands below. Boom stand is ideal for large part size, Track stand with backlight is perfect for medical device and machining part that need backlighting, Post stand is compact and thin profile stand for the small part, Articulating Arm Stand is good for those prefer to swing the microscope away from the work area.

Boom Stand (BS) Track Stand Backlighting (TSBL) Post Stand (PS) Articulating Arm Stand (AA)
  • Hor x Ver post
  • For up to 36″ work area
  • Hor Post x 10″ throat depth
  • For part size smaller than 10″
  • LED backlight base
  • Hort Post x 10″ throat depth
  • For part size smaller than 10″
  • Articulating Arm Stand with Focus
  • U clamp for workbench mounting
  • OR Weight base
photo 1 photo 2 photo 3

3D Rotational Angle View Lens

3D Angle View

Sliding between Straight View and 3D Angle View

Straight View


Lens Adapters

LX-70 standard zoom of 10x-70x can be expanded with lens adapters of 0.3x, 0.5x, 0.7x, 1.5x, and 2x. Expanded zoom magnification can be 3x to 1,400x.


Infinity High Power Objectives

If you need high power magnification for inspecting IC wafer, or metallurgic, you can add Long Working Distance Infinity High Power Objective Lenses of 5x, 10x, 20x.

Infinity High Power Objective Lenses


System Models

LX-70 can be configured with Auto Focus HD Camera or 4K UltraHD Camera, choices of 12″ LCD, 24″ Desktop LCD, or providing your own LCD, and Boom Stand, Track Stand Backlighting, or Post Stand. You can pick and choose to suit your applications. Below are the most popular system models. If you have any questions, please feel free to contact us.

  System Model No Key Features
LX-70-HD60-L12-BS Auto Focus, 12″ LCD, Boom Stand
  LX-70-HD60-L12-TSBL Auto Focus, 12″ LCD, Track Stand Backlight
  LX-70-HD60-L12-PS Auto Focus, 12″ LCD, Post Stand
LX-70-HD60-L24-BS Auto Focus, 24″ LCD, Boom Stand
  LX-70-HD60-L24-TSBL Auto Focus, 24″ LCD, Track Stand Backlight
  LX-70-HD60-L24-PS Auto Focus, 24″ LCD, Post Stand
LX-70-4K-L24U-BS 4K, 24″ 4K-LCD, Boom Stand
LX-70-4K-L24U-TSBL 4K, 24″ 4K-LCD, Track Stand Backlight
  LX-70-4K-L24U-PS 4K, 24″ 4K-LCD, Post Stand




Specifications



LX-70 Specifications
HD60AF Camera
  • 6 MP 1080p HD Camera with HDMI, USB2.0 & SD outputs. 60 FPS on HDMI, 30 FPS on USB2.0.
  • Auto Focus, One-Click Focus, Manual Focus
  • Measurement
4K Ultra HD Camera
  • 8 MP 4K Ultra HD Camera with HDMI, GE, USB3.0 & SD outputs. 60 FPS on HDMI, 30 FPS on USB3.0
  • Manual Focus
  • Measurement
Measurement Software Measurement software with Extended Depth of Focus and Photo Stitching functions for PC Windows 10/8/7
Standard Zoom Magnification 10x – 70x
Standard Field Of View 23mm – 3.5mm
Zoom Range:  0.7x – 4.5x
Zoom Ratio: 1: 6.5
Magnification Range Expand to 3x-1,400x with optional lens adapters
Field of View Expand to 0.175mm – 77mm
Standard Working Distance 96mm
Working Distance 46mm – 331mm
Optional Objective Lenses 0.3X, 0.5X, 0.75X, 1.0X, 1.5X and 2.0X
Optional High Power Objective Lenses HL-5x, HL-10x, HL-20x
Illumination

LED Ring Light with Intensity Adjustment

Optional: UV Ring Light for Conformal Coating Inspection

Optional: Polarizer Ring Light

Stands Post stand with focus block (PS)
Track stand with focus block (TS)
Post stand with backlighting and focus block (TSBL)
Multi-position multi-angle viewing boom stand with focus block (BS)
Hydraulic arm stand with focus block mounting to table edge (AA)
Computer Requirements

PC Windows 10/8/7

USB2.0 or USB3.0 port

Electrical 110-220V




Options

Additional Lens Adapters to expand zoom magnification and 3D Rotational Viewing

LX-3D 3D Rotational Angle Lens Adapter

  • Offer 3D 360° manual rotation
  • 35° Oblique angle view with 0.75x
  • Quick switching between 3D angle view and straight view
LX-03 0.3x reducer, 331mm (13”) WD
LX-05 0.5x reducer, 198mm (7.8”) WD
LX-075 0.75x reducer, 131mm (5.2”) WD
LX-15 1.5x magnifier, 60mm (2.4”) WD
LX-20 2x magnifier, 46mm (1.8”) WD




LX-70 Zoom Lens Specifications

From the chart below, you can determine if LX-70 offers the right zoom range by the Field Of View column.

LX-70 Zoom Lens Magnification and Field Of View
Auxiliary Lens Working Distance (mm) Working Distance (inch) Magnification on LCD-12* Field Of View (mm)
0.3X 331 mm 13″ 3x – 21x 77 – 12mm
0.5X 198 mm 7.8″ 5x – 36x 46 – 7mm
0.75X 131 mm 5.1″ 8x – 53x 31 – 4.7mm
1.0X** 96 mm 3.8″ 11x – 71x 23 – 3.5mm
1.5X 63 mm 2.5″ 17x – 107 15 – 2.3mm
2X 46 mm 1.8″ 22x – 142x 11.6 – 1.7mm

*LCD-12 = 255mm (display width)

**1.0x Lens Adapter is included as standard LX-70 Lens
