BGA Inspection Mirror (BGA-HM)

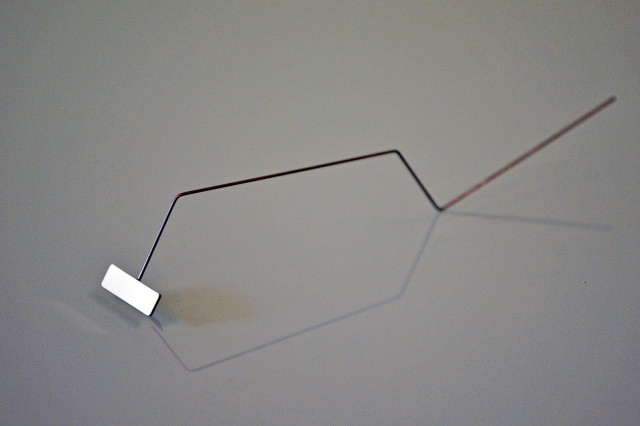

BGA inspection mirror1

BGA Inspection Mirror (BGA-HM) for use with microscope and video inspection system LX-100 & RX-100


BGA inspection mirror on PCB

Place BGA inspection mirror along side of BGA allows for 90 degree inspection into BGA solder joints


Key Features

  • Use with your existing microscope or video inspection system for inspecting BGA solder joints
  • Simply place along side of BGA components and you are ready to inspect
  • Offer 90 degree view into BGA solder joints
  • Adjustable tilting angles for mirror
  • Good for inspection J-leads, connectors, and 90 degree view of fine pitch

Application sample images



$200 price range Get Price Quote
