VIP-50 Video Inspection System 1x-50x Zoom


VIP-50 1080p HD Video Inspection System

1x-50x Macro Zoom & LONG Working Distance

Caltex Retina Display 1920x1080 Full HD USB SD ruler mouse

Retina Display – 1920×1080 Full HD – SD card – Measurement included

Macro Zoom 1x-50x Long Working Distance 6″+ Great Depth of Focus 1080p HD real time & capture photo & video to SD
$2,900+ price range Get Price Quote
Inspection Zoom Measurement Design Ergonomic Applications Model Options Specifications



Non-Fatigue Inspection with Ultra Sharp Retina Display

VIP-50 with new Ultra Sharp 12″ Retina Display for direct line of sight and amazing image details

  • 1x – 50x Macro Zoom with Extra Long Working Distance
  • 12″ Ultra Sharp Retina Display 1920 x 1080 offers 190 pixels per inch, 4 times more density per square inch than a typical 24″ LCD
  • Capture image and video to SD card without a computer
VIP-50-HD60L12-BS Digital USB HD Microscope

VIP-50-HD60L12-BS Digital USB HD Microscope

Learn More about Retina Display




Learn More about Polarizer




Macro Zoom 1x – 50x with Extra Long Working Distance

VIP-50 macro zoom lens digital USB HD microscope

  • Japanese made optic
  • 1x – 50x Zoom
  • Working Distance from 6″ to Infinity
  • Parfocal over entire zoom range
  • 18 – 108 mm with manual zoom, focus and iris
  • Perfect for medical device, PCB soldering and reworking, industrial inspection.






Perfect Ergonomic Solution For Your Inspection. No More Fatigue and Eye Strain!

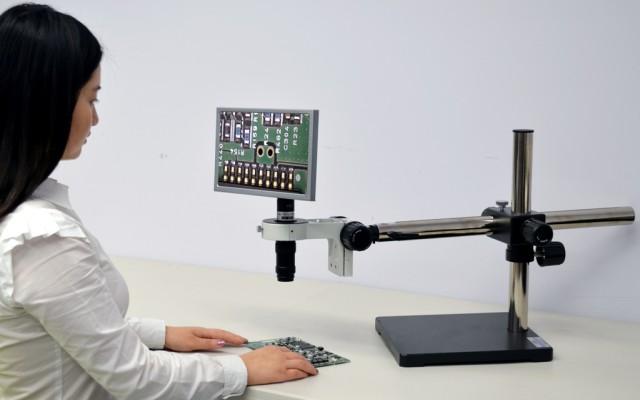

1080p HD video inspection 1x-50x (VIP-50)

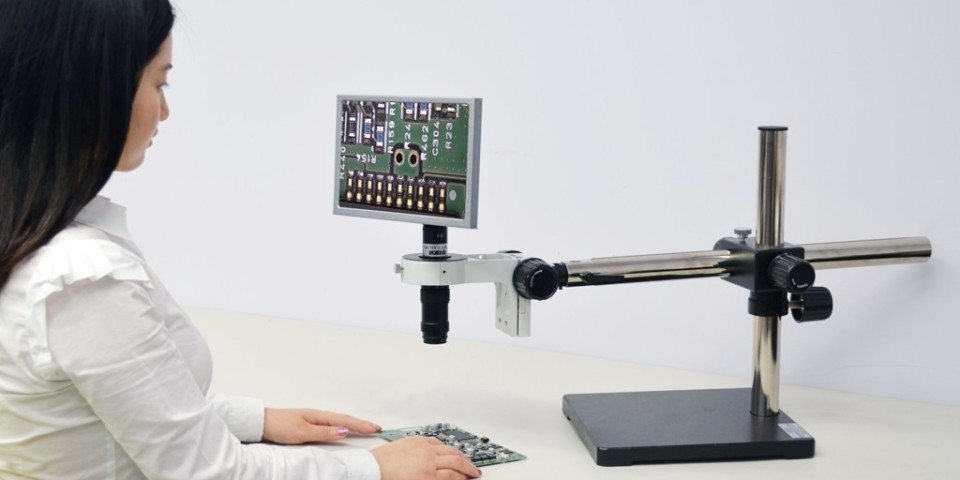

1080p HD video inspection 1x-50x (VIP-50)

Are you tired of looking through microscope eye pieces? Are you tired of focusing constantly to get microscope in focus? Are you fatigued by eye strain and neck pain?

VIP-50 macro zoom video inspection is the solution to your inspection challenges. Built with 1080p HD camera and Ultra Sharp Retina Display, the image is as clear as you can get. With quick 1x to 50x zoom and great depth of field, you will not need to adjust focus as frequently as before. And now you can watch 1080p HD image on HD LCD screen without eye fatigue. Just lay back and watch LCD to inspect your parts!






All-In-One Design for Ergonomic and Direct Line of Sight

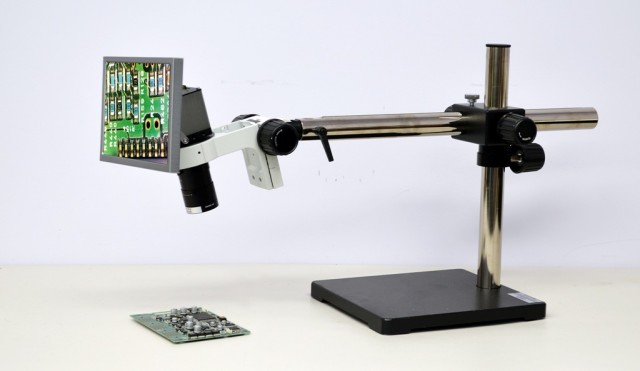

VIP-50-HD60L12 Retina Display VIP-50-HD60L12-BS

VIP-50 Digital Microscope with Multi Angle Tilting and Multi Position Boom Stand






Measurement (dual mode)

1. Direct Measurement on LCD without a computer

2. Measuring on Computer with Measurement Software (included)

(Windows 7/8/10)

Easy to use with mouse clicks to measure all dimensions:

  • XY linear distance
  • Parallel lines distance
  • Perpendicular distance from a point to a line
  • Radius
  • Diameter
  • Angle
  • Area
  • Path length
  • Annotation
  • Cross hair
  • Calibration

Measurement Results can be:

  • Save with image as jpg
  • Export out to Excel
HD60 digital USB microscope measurement software screen 1

Easy to use with mouse clicks to measure all dimensions on computer

Measurement Software Video Demonstration






Perfect Inspection Tool for Medical Devices

VIP-50 Video Demonstration

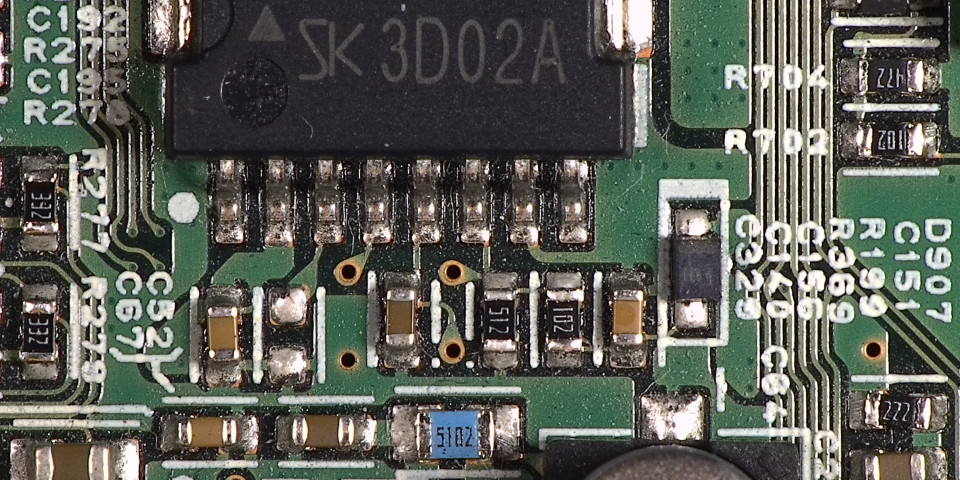

Perfect for PCB Soldering and Reworking

Exif_JPEG_422 Exif_JPEG_422 Exif_JPEG_422 Exif_JPEG_422






Applications

  • soldering rework
  • medical device inspection
  • general QC inspection without eye strain
  • ergonomic assembly under microscope
  • images capture for documentation
  • medical device
  • surface mount technology
  • coil winding
  • materials research
  • long working distance requirement

Features

  • 1080p HD camera for ergonomic real-time inspection & assembly
  • 1x to 50x zoom with long working distance (6″+)
  • Long working distance for easy soldering and freedom to maneuver under scope for assembly inspection
  • Great depth of field for easy focusing
  • Capture image to SD without a computer
  • Measurement software included for computer when running with USB
  • 1080p HDMI and USB2.0 dual outputs simultaneously
  • Macro Zoom Lens 1x-50x
    • IRIS (Aperture) control for adjusting depth of field
    • Zoom adjustment
    • Focus adjustment
    • Japanese optic






VIP-50 Models and Options

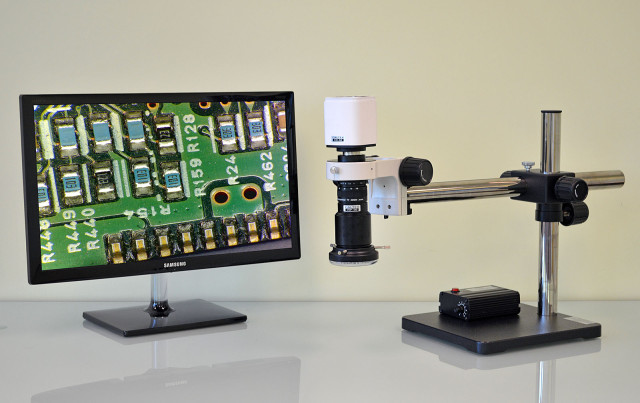

VIP-50-HD60-BS-LCD24 Digital USB HD Microscope

VIP-50-HD60-BS

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Multi-position and multi tilting angle boom stand for large PCB and parts over 10″






VIP-50-HD60L12-BS Digital USB HD Microscope

VIP-50-HD60L12-BS

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Multi-position and multi tilting angle boom stand for large PCB and parts over 10″
  • 12″ Retina Display built in






VIP-50-HD60L12-BS-FM

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Multi-position and multi tilting angle boom stand for large PCB and parts over 10″
  • 12″ Retina Display built in
  • 360º Flexible Mounting 12″ LCD for any angle viewing






VIP-50-HD60-TSBL-L24 HD digital USB microscope

VIP-50-HD60-TSBL

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Track stand with LED back lighting for medical devices and machining parts under 10″ size








VIP-50-HD60L12-TSBL HD digital USB microscope

VIP-50-HD60L12-TSBL

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Track stand with LED back lighting for medical devices and machining parts under 10″
  • 12″ Retina Display built in






VIP-50-HD60-PS

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Compact Post Stand with focus block, for limited work space and part size under 10″






VIP-50-HD60L12-PS

  • Macro zoom 1x-50x
  • 1080p HD 6MP digital USB camera
  • Compact Post Stand with focus block, for limited work space and part size under 10″
  • 12″ Retina Display built in






Specifications

VIP-50 System

Specifications

HD60 Camera 1080p HD 6 MP Camera with HDMI and USB2.0 outputs
HD60-L12 HD60 plus Ultra Sharp Retina Display 1920×1080 60 FPS, HDMI input
LCD-24 24″ Desktop HD LCD 1920×1080, HDMI & VGA input (optional)
Memory Storage SD card for image and video capturing without a computer
Measurement Software Dimensional measurement software included for computer USB2.0 mode
Zoom Lens 1x to 50x with long working distance 5″ to 12″
Lighting LED ring light with intensity control
Boom Stand (BS) Multi tilting anlge, swivel, and multi position boom stand with weight base
Track Stand (TSBL) Track Stand with LED Back Lighting and Focus Block, for size 10″ or smaller
Computer Requirements Windows 7/8/10 with USB2.0 port
LCD Requirements 1080p HD LCD with HDMI input
Power Requirements 110-220V
Warranty One Year Warranty

VIP-50 Zoom Lens Specifications

Working Distance High Mag (H x V) in mm Low Mag (H x V) in mm
5″ 5.8 x 4.4 35 x 26.3
6″ 7.3 x 5.5 43.8 x 32.9
7″ 8.7 x 6.6 42.6 x 39.4
8″ 10.2 x 7.7 61.3 x 46
9″ 11.7 x 8.8 70.1 x 52.6
10″ 13.1 x 9.9 78.8 x 59.1
11″ 14.6 x 11 87.6 x 65.7
12″ 16.1 x 12 96.4 x 72.3
